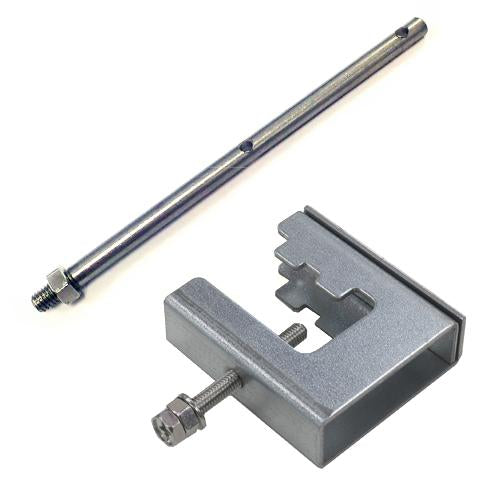

Strong clamp strut (1 set) *Pinch width 22 mm

Strong clamp strut (1 set) *Pinch width 22 mm

出荷日目安:
Ships within 3-4 business days
Regular price ¥1,880
Regular price ¥1,880 Sale price ¥1,880
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

Of the four types of anti-bird wire posts, this type can be easily installed on steel materials such as H-shaped steel. Strong clamp type for strong tightening. It is also ideal for places where vibration is a concern, such as station platforms and bridges. Also supports tools such as Phillips screwdrivers and socket wrenches. Work can be done in a short time.

* When tightening with an electric tool, slow down the tightening speed. Rapid tightening may cause the threaded part to "seize" and cause damage. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective. *It is a stand alone. Depending on the installation location, please purchase the required quantity of springs and wires separately.

Installation example

Stanchion Type: Strong Clamp Stanchion


〇Compatible with strong tightening. Ideal for places where vibration is a concern, such as stations and bridges. It supports various construction sites such as hospitals, station platforms, houses, condominiums, buildings, and highways.

〇 Use by screwing the pole into the clamp.

〇It is a good idea to use a bird-proof sword mount in combination with a deep place.

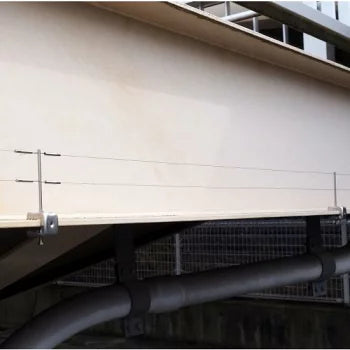

Strong clamp set installation example

Various support 4 types that can be selected according to the installation location

We have 4 types of props that fit various installation locations. Since it is a part that considers workability, work efficiency is also excellent. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective.

standard base set

Standard base post

It's a standard pillar. It can be stably installed in a pipe-shaped place with a diameter of 32 mm or more.
To product details>>

clamp band set

clamp band strut

It is the best support for thin pipes. Applicable minimum diameter 16 mm. Can be installed on thin pipes and pipe materials.
To product details>>

compact clamp set

compact clamp post

Supports that can be easily installed on H-shaped steel, etc.
To product details>>

strong clamp set

strong clamp post

Supports that can be strongly tightened and are ideal for locations subject to vibration.
To product details>>

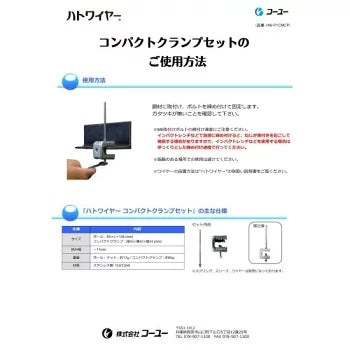

Installation method

How to make anti-bird wire


●Stand up pillars at 2m intervals and stretch the wires.

●Use a spring every 4m. For example, if you use three posts at a height of 4m, you can simply pass the wire through the hole in the center post. However, when stretching the wire in an L-shape or U-shape, be sure to use springs at the corners.

●Also, please be sure to use the struts for the terminal struts.

●The spring can be either a spring or a one- touch spring . When using the spring, prepare the same number of sleeves ( aluminum sleeves or stainless sleeves ).

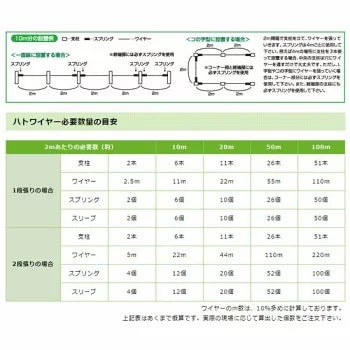

★ Installation example for 10m

Installation example for 10m

Approximate required quantity of each component

2m 10m 20m 50m 100m
In the case of 1-tier strut Two 6 11 26 51
wire 2.5m 11m 22m 55m 110m
Spring 2 pieces 6 10 pieces 26 pieces 50 pieces
In the case of two-tiered strut Two 6 11 26 51
wire 5m 22m 44m 110m 220m
Spring Four 12 pieces 20 pieces 52 pieces 100 pieces

Part names of bird-proof wire set

Select each component according to the installation location.

anti-bird wire

1: Bird repellent wire A wire that is stretched to prevent birds from flying.
Click here for a list of wire products

2: It is a spring for stretching the spring wire with appropriate tension.
Click here for a list of spring products

3: This is the strut for stretching the strut wire. Various types are available depending on the installation location.
Click here for a product list of struts

4: Used as necessary when installing in a bandpipe-like location.
Click here to purchase the band

Product specifications

サイズ ポール/太さ φ5mm×長さ109mm ストロングクランプ/縦59mm×横65.5mm×幅20mm ポール用ビス穴径 M5、挟み幅~22mm ポールとコンパクトクランプ組み合わせ時/高さ(設置面から)約127mm
素材 ステンレス製(SUS304)
