Standard base post (1 set)

Standard base post (1 set)

出荷日目安:
Ships within 3-4 business days
Regular price ¥1,350
Regular price ¥1,350 Sale price ¥1,350
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

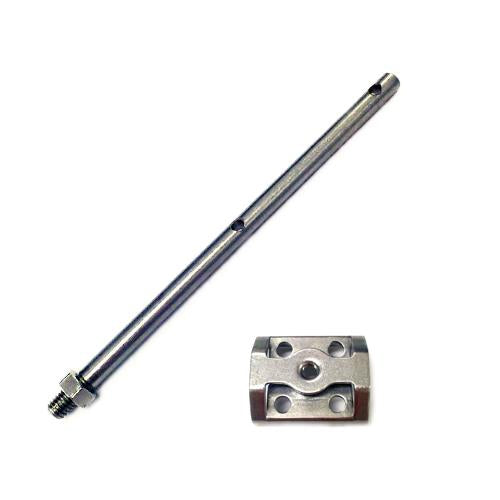

Of the 4 types of anti-bird wire posts, this type is suitable for handrails and pipes with a diameter of 32 mm or more. This post is a set of the base part and the post of the pole. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective. *It is a stand alone. Depending on the installation location, please purchase the required quantity of springs and wires separately.

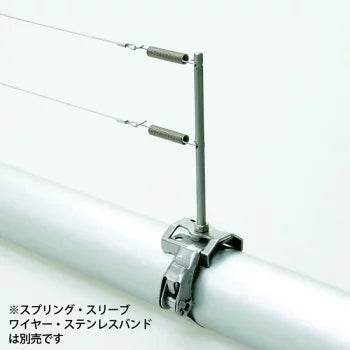

If you use a stainless steel band (sold separately), you can install it stably on curved surfaces such as handrails and pipes without rattling. Install on a flat surface with screws. *In addition, the applicable diameter of the installation location is φ32 mm or more. For thinner pipes and tubing, use the clamp band set .

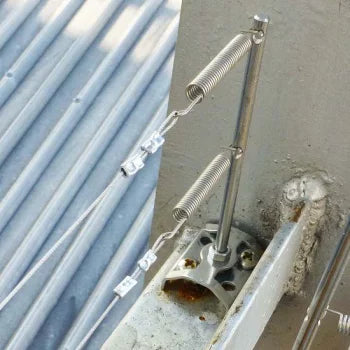

Installation examples & user reviews

Stanchion Type: Standard base stanchion

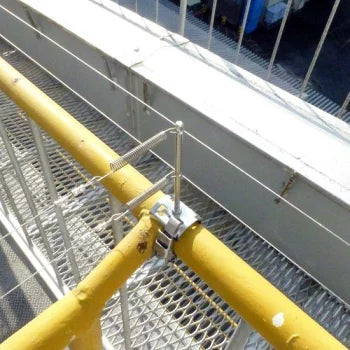

*The post on the left side of the photo is fixed to the pipe using a flat screw, and the right side is fixed to the pipe using a band.

“There were countless birds perched on the handrails, and we were struggling to find a solution. It can be installed on the handrail, and the handrail can be used even after installation, so we adopted a bird repellent wire. After installation, the damage was drastically reduced, and I am satisfied because the handrail can be used without problems. 』

“The installation area was dotted with circular and curved handrails, but by arranging the pillars in small intervals in the circular and curved sections, we were able to install them without any gaps for pigeons to stop. 』

Installation examples & user reviews Standard base set

Various support 4 types that can be selected according to the installation location

We have 4 types of props that fit various installation locations. Since it is a part that considers workability, work efficiency is also excellent. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective.

standard base set

Standard base post

It's a standard pillar. It can be stably installed in a pipe-shaped place with a diameter of 32 mm or more.
To product details>>

clamp band set

clamp band strut

It is the best support for thin pipes. Applicable minimum diameter 16 mm. Can be installed on thin pipes and pipe materials.
To product details>>

compact clamp set

compact clamp post

Supports that can be easily installed on H-shaped steel, etc.
To product details>>

strong clamp set

strong clamp post

Supports that can be strongly tightened and are ideal for locations subject to vibration.
To product details>>

Installation method

How to make anti-bird wire


●Stand up pillars at 2m intervals and stretch the wires.

●Use a spring every 4m. For example, if you use three posts at a height of 4m, you can simply pass the wire through the hole in the center post. However, when stretching the wire in an L-shape or U-shape, be sure to use springs at the corners.

●Also, please be sure to use the struts for the terminal struts.

●The spring can be either a spring or a one- touch spring . When using the spring, prepare the same number of sleeves ( aluminum sleeves or stainless sleeves ).

★ Installation example for 10m

Installation example for 10m

Approximate required quantity of each component

2m 10m 20m 50m 100m
In the case of 1-tier strut Two 6 11 26 51
wire 2.5m 11m 22m 55m 110m
Spring 2 pieces 6 10 pieces 26 pieces 50 pieces
In the case of two-tiered strut Two 6 11 26 51
wire 5m 22m 44m 110m 220m
Spring Four 12 pieces 20 pieces 52 pieces 100 pieces

Part names of bird-proof wire set

Select each component according to the installation location.

anti-bird wire

1: Bird repellent wire A wire that is stretched to prevent birds from flying.
Click here for a list of wire products

2: It is a spring for stretching the spring wire with appropriate tension.
Click here for a list of spring products

3: It is a prop to stretch the prop wire. Various types are available depending on the installation location.
Click here for a product list of struts

4: Used as necessary when installing in a bandpipe-like location.
Click here to purchase the band

Product specifications

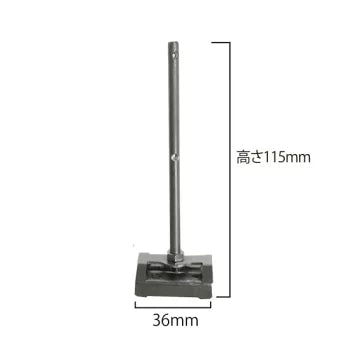

サイズ ポール/太さφ5mm×長さ109mm ベース/横幅36mm×奥行き30mm×高さ14mm ビス穴径 M5、ポールとベース組み合わせ時/高さ119mm
素材 ステンレス製(SUS304)
