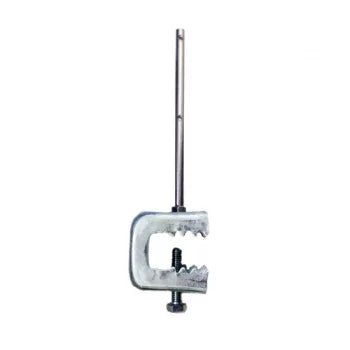

Compact clamp post (1 set)

Compact clamp post (1 set)

出荷日目安:: Ships within 3-4 business days

選択してください

16mm - ¥1,818

Product variants

¥1,818

~~¥1,818~~ ¥1,818

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

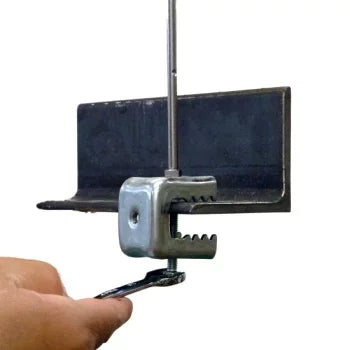

Of the four types of anti-bird wire posts, this type can be easily installed on steel materials such as H-shaped steel. Also supports tools such as Phillips screwdrivers and socket wrenches. Work can be done in a short time. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective. *It is a stand alone. Depending on the installation location, please purchase the required quantity of springs and wires separately.

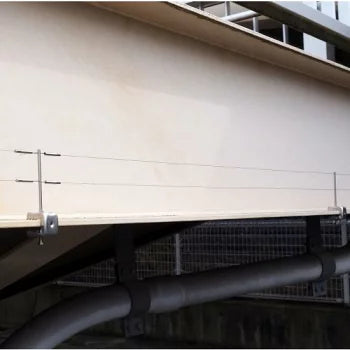

Installation examples & customer reviews

Post Type: Compact Clamp Post

*Compact clamp struts were used because the piers of the pedestrian bridge were H-shaped steel.

“We installed a pigeon wire because pigeons stopped on the pedestrian bridge and caused fecal damage. The appearance is also refreshing and I am very satisfied. In addition, by adopting a one- touch spring for the spring, the installation was completed very quickly. 』

Various support 4 types that can be selected according to the installation location

We have 4 types of props that fit various installation locations. Since it is a part that considers workability, work efficiency is also excellent. There are two holes in the pole, and you can hang wires on each. It is recommended to make it two-tiered because it is more effective.

Standard base post

It's a standard pillar. It can be stably installed in a pipe-shaped place with a diameter of 32 mm or more.
To product details>>

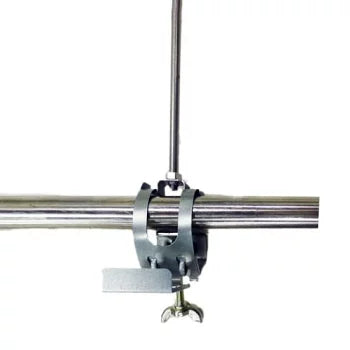

clamp band strut

It is the best support for thin pipes. Applicable minimum diameter 16 mm. Can be installed on thin pipes and pipe materials.
To product details>>

compact clamp post

Supports that can be easily installed on H-shaped steel, etc.
To product details>>

strong clamp post

Supports that can be strongly tightened and are ideal for locations subject to vibration.
To product details>>

Installation method

How to make anti-bird wire

●Stand up pillars at 2m intervals and stretch the wires.

●Use a spring every 4m. For example, if you use three posts at a height of 4m, you can simply pass the wire through the hole in the center post. However, when stretching the wire in an L-shape or U-shape, be sure to use springs at the corners.

●Also, please be sure to use the struts for the terminal struts.

●The spring can be either a spring or a one- touch spring . When using the spring, prepare the same number of sleeves ( aluminum sleeves or stainless sleeves ).

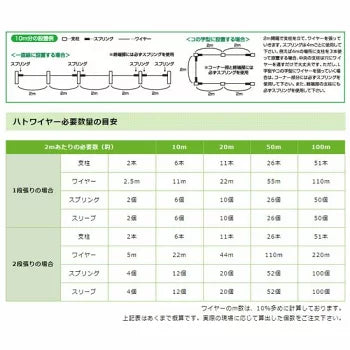

★ Installation example for 10m

Approximate required quantity of each component

		2m	10m	20m	50m	100m
In the case of 1-tier	strut	Two	6	11	26	51
	wire	2.5m	11m	22m	55m	110m
	Spring	2 pieces	6	10 pieces	26 pieces	50 pieces
In the case of two-tiered	strut	Two	6	11	26	51
	wire	5m	22m	44m	110m	220m
	Spring	Four	12 pieces	20 pieces	52 pieces	100 pieces

Part names of bird-proof wire set

Select each component according to the installation location.

1: Bird repellent wire A wire that is stretched to prevent birds from flying.
Click here for a list of wire products

2: It is a spring for stretching the spring wire with appropriate tension.
Click here for a list of spring products

3: It is a prop to stretch the prop wire. Various types are available depending on the installation location.
Click here for a product list of struts

4: Used as necessary when installing in a bandpipe-like location.
Click here to purchase the band

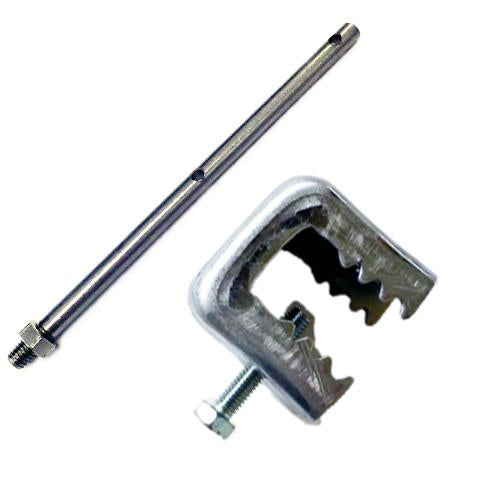

Product specifications

サイズ	ポール／太さ φ5mm×長さ109mm コンパクトクランプ／縦45mm×横42mm×幅34mm ポール用ビス穴径 M5 挟み幅／～13mm、～16mm ポールとコンパクトクランプ組み合わせ時／高さ（設置面から）約117mm
素材	ステンレス製（SUS304）
