With Nishiden 5W solar panel & battery for solar charging. Electric fence NSDSR-5W (main unit set only)

With Nishiden 5W solar panel & battery for solar charging. Electric fence NSDSR-5W (main unit set only)

出荷日目安:: Ships within 7 business days

選択してください

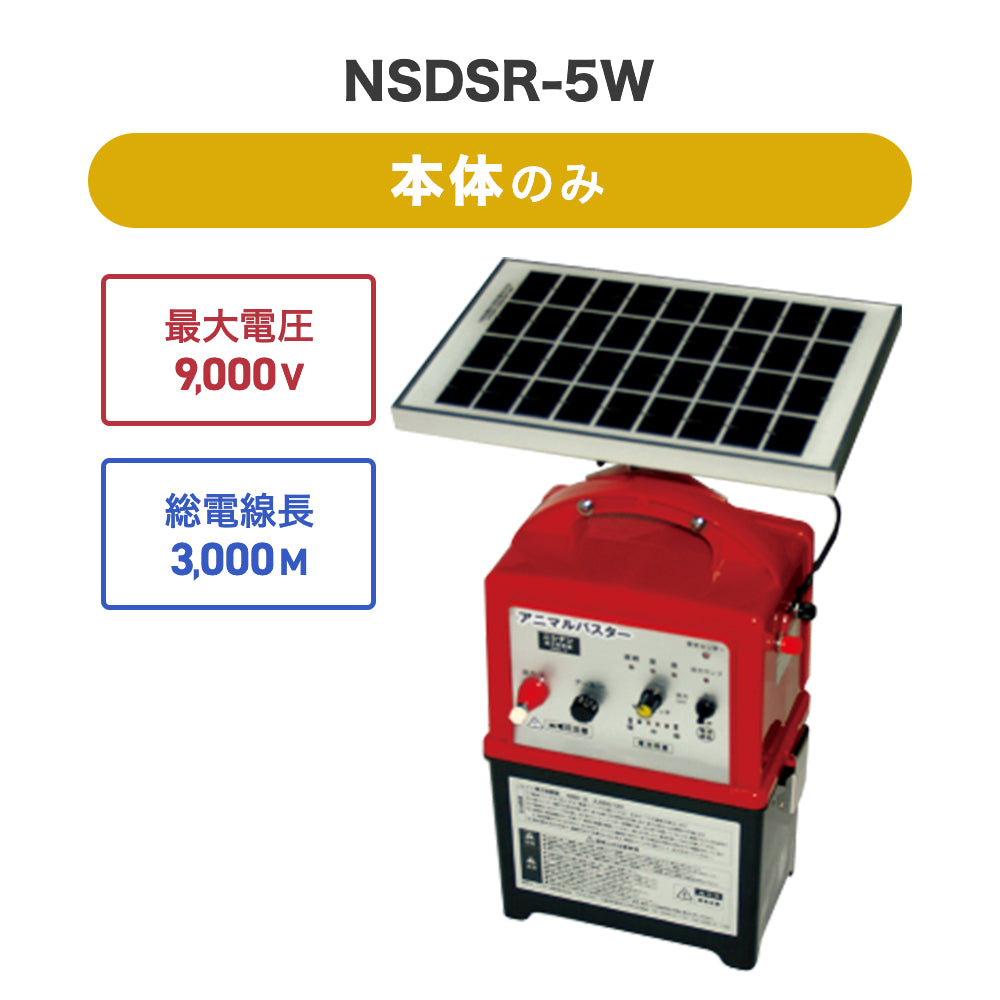

With 5W solar panel & battery for solar charging. Electric fence NSDSR-5W (main unit set only) - ¥43,200

Product variants

5Wソーラー発電

最大電線長3000ｍ

使いやすさ抜群

国産電気柵の本体です。草や設置不備で漏電しても電圧が落ちにくい特徴があるため、しっかりと獣の侵入を防ぎます。

¥43,200

~~¥43,200~~ ¥43,200

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

Please check before ordering

○ With 5W solar panel & battery for solar charging ( 12W type with high power generation is here ). You can drive it without purchasing a power supply separately. Runs on 8 AA alkaline batteries (sold separately) or an external power supply. Click here for the type that does not come with a solar panel

○It is the sale in the body simple substance. If you would like to purchase a set of props and wires, please see this page .

○The maximum cable length per unit is 3000m. *Varies depending on installation conditions.

○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.

○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.

○Please be careful not to allow children to come near the installation location.

to install an electric fence

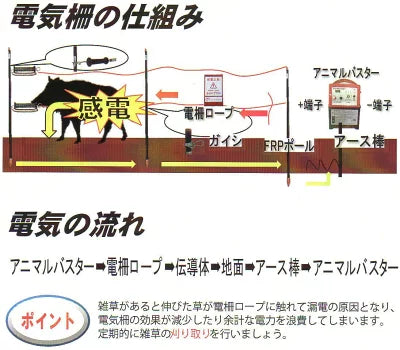

To install an electric fence, you need a main body (power supply) set and an electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.

Electric fence body (power supply) set 2

Main unit (power supply) set

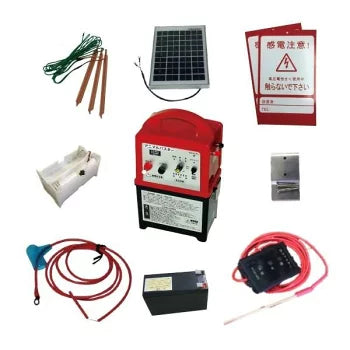

A power supply unit for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, a main unit mounting bracket, and a voltage detector (tester) are included as a set.

Reference video 1

electric wire set

The set includes a rope (electric wire) for transmitting electric shocks, a post for stretching the rope, an insulator, and a gate clip to be installed at the entrance.

Reference video 2

A full-fledged specification that will not lose to the beast

Compatible with 3 types of power supplies

It supports three types of dry cell, external battery, and solar power generation. The dry cell and battery inputs are on separate circuits, and even if they are connected at the same time, the one with the higher voltage is automatically selected, so it is convenient to use them together.

Outstanding ease of use

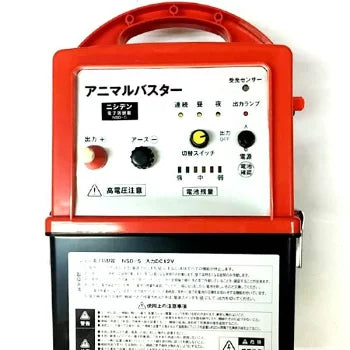

You can see the remaining battery level at a glance (“strong” lights up in green, “medium” in yellow, and “weak” in red). When the battery level turns red, an audible beep sounds at intervals to let you know when it's time to change the battery.

It is also possible to set the operating time

It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)

Example of installation method for each animal

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Electric Fence NSD-5 & Post/Electric Wire Set (Perimeter 100m x 2 Stages)

This set is recommended as a countermeasure against wild boars. A complete set of equipment needed to install an electric fence. Learn more>>

Electric Fence NSDSR-5W & Post/Electric Wire Set (Perimeter 100m x 2 Stages)

It is a bargain set that comes with solar panel power generation. By reducing the frequency of battery replacement, you can save time and money. Learn more>>

Electric Fence Components Individual Sales (Electric Wires, Supports, Gate Clips, Insulators, etc.)

If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>

Product specifications

入力電源（DC）	乾電池（1.5V×8個※別売）、外部電源（鉛蓄電池バッテリー等）12V9Ah
出力電圧（DC）	約9,000Ｖ
電池寿命	充放電　300回～500回　※使用状況により異なります。
出力周期	1.0～1.2秒
出力ランプ、出力音	作動時（約3,500Ｖ以上）に点灯し、ピッ音が鳴ります。
外形寸法	（約）巾210mm×奥行160mm×高さ350mm　※ソーラー部分を除く
重量	約8.0kg
付属品	危険表示板×3　アース棒3連×1　高圧線×1　本体取付金具×1　電池ケース×1　検電器×1　5Ｗソーラーパネル　シールドバッテリー　内部バッテリーコード　ソーラー取り付け金具ステンレス　取扱説明書
