Electric Wire Set (Strut, Insulator, Electric Wire, Gate Clip) 100m x 2 Tier Set Nishiden

Name: Electric Wire Set (Strut, Insulator, Electric Wire, Gate Clip) 100m x 2 Tier Set Nishiden
Brand: イノホイ オンラインショップ
SKU: electricfence-007
Price: 10364.0 JPY
Availability: InStock

Electric Wire Set (Strut, Insulator, Electric Wire, Gate Clip) 100m x 2 Tier Set Nishiden

選択してください

100m circumference x 2-step set (post height 900mm) - ¥10,364

Product variants

お買い得

周囲100m分

使いやすさ抜群

電気柵の設置に必要となる、支柱＋電線＋ガイシ＋ゲートクリップがお買い得なセットになった商品です。

¥10,364

~~¥10,364~~ ¥10,364

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

Product composition

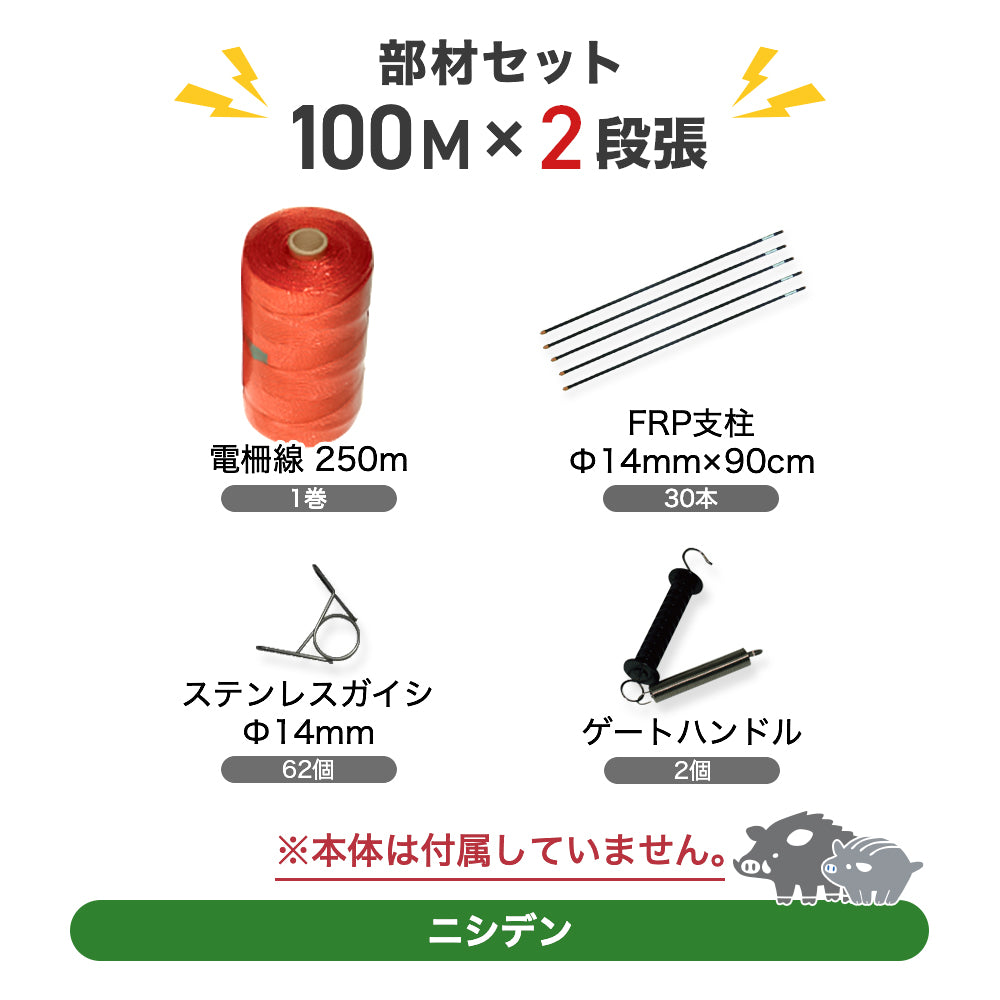

★This is a bargain set that includes the posts, wires, insulators, and gate clips that are necessary for installing an electric fence. A set of 100 meters around x 2 tiers is included. * If you want to purchase the main unit (power supply), please click here .

◯ FRP electric fence post Φ14mm x height 900mm・・・30

◯ Stainless insulator 14mm・・・62 pieces

○Gate clip・・・2 pieces

◯Electric fence rope (stainless steel 3 wires) 250m・・・1 roll

to install an electric fence

To install an electric fence, you need the main body (power supply) set (sold separately) and this electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.

Electric fence body (power supply) set 2

Main unit (power supply) set

A power supply unit for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, a main unit mounting bracket, and a voltage detector (tester) are included as a set.

Reference video 1

electric wire set

The set includes a rope (electric wire) for transmitting electric shocks, a post for stretching the rope, an insulator, and a gate clip to be installed at the entrance.

Reference video 2

Example of installation method for each animal

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Electric Fence NSD-5 & Post/Electric Wire Set (Perimeter 100m x 2 Stages)

This set is recommended as a countermeasure against wild boars. A complete set of equipment needed to install an electric fence. Learn more>>

Electric Fence NSDSR-5W & Post/Electric Wire Set (Perimeter 100m x 2 Stages)

It is a bargain set that comes with solar panel power generation. By reducing the frequency of battery replacement, you can save time and money. Learn more>>

Electric Fence Components Individual Sales (Electric Wires, Supports, Gate Clips, Insulators, etc.) Electric fence material sold separately

If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>
