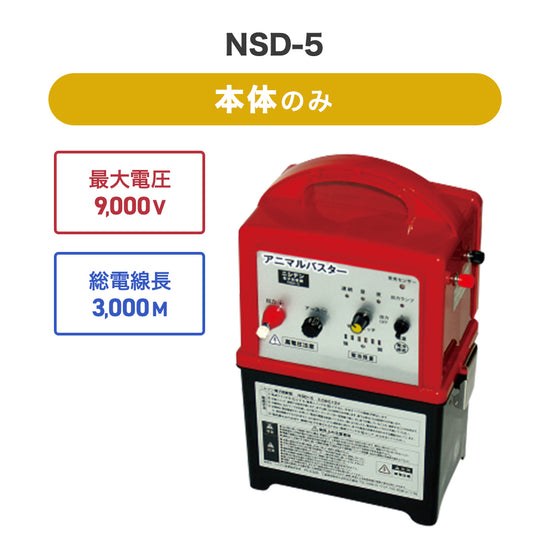

Nishiden electric fence NSD-5 (main unit set only)
Nishiden electric fence NSD-5 (main unit set only)
人気機種
使いやすさ抜群
国産電気柵の本体です。草や設置不備で漏電しても電圧が落ちにくい特徴があるため、しっかりと獣の侵入を防ぎます。
商品説明
Please check before ordering
○It is the sale in the body simple substance. If you would like to purchase a set of props and wires, please see this page .
○The maximum cable length per unit is 3000m. *Varies depending on installation conditions.
○ Operates with 8 AA alkaline batteries (sold separately) or an external power supply. Solar panel is not included (can be retrofitted). Click here for the type with solar panel
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.
to install an electric fence
To install an electric fence, you need a main body (power supply) set and an electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.
Main unit (power supply) set

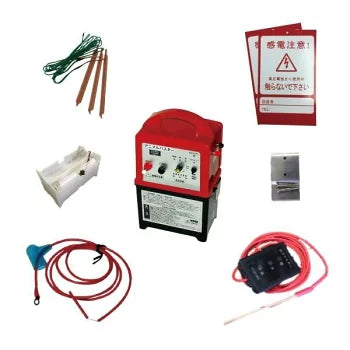

A power supply unit for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, a main unit mounting bracket, and a voltage detector (tester) are included as a set.
electric wire set
The set includes a rope (electric wire) for transmitting electric shocks, a post for stretching the rope, an insulator, and a gate clip to be installed at the entrance.
A full-fledged specification that will not lose to the beast
Reliable and secure circuit design
The maximum voltage is about 9,000V. In general, weeds and improper installation often cause electric leakage and voltage drop, but this device is designed to prevent the voltage from dropping even in such cases, so it can give a solid shock. increase.
Outstanding ease of use
You can see the remaining battery level at a glance (“strong” lights up in green, “medium” in yellow, and “weak” in red). When the battery level turns red, an audible beep sounds at intervals to let you know when it's time to change the battery.
It is also possible to set the operating time
It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)
Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>

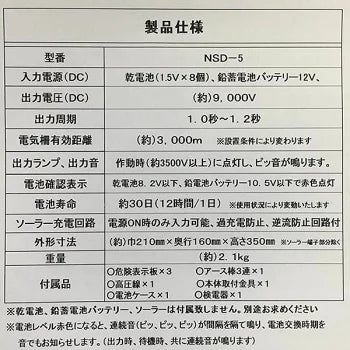

Product specifications
| 入力電源（DC） | 乾電池（1.5V×8個※別売）、外部電源（鉛蓄電池バッテリー等）12V |
|---|---|
| 出力電圧（DC） | 約9,000Ｖ |
| 電池寿命 | 約30日（1日12時間稼働設定）※使用状況により変動 |
| 出力周期 | 1.0～1.2秒 |
| 出力ランプ、出力音 | 作動時（約3,500Ｖ以上）に点灯し、ピッ音が鳴ります。 |
| 外形寸法 | （約）巾210mm×奥行160mm×高さ350mm |
| 重量 | 約2.1kg |
| 付属品 | 危険表示板×3 アース棒3連×1 高圧線×1 本体取付金具×1 電池ケース×1 検電器×1 取扱説明書 |
