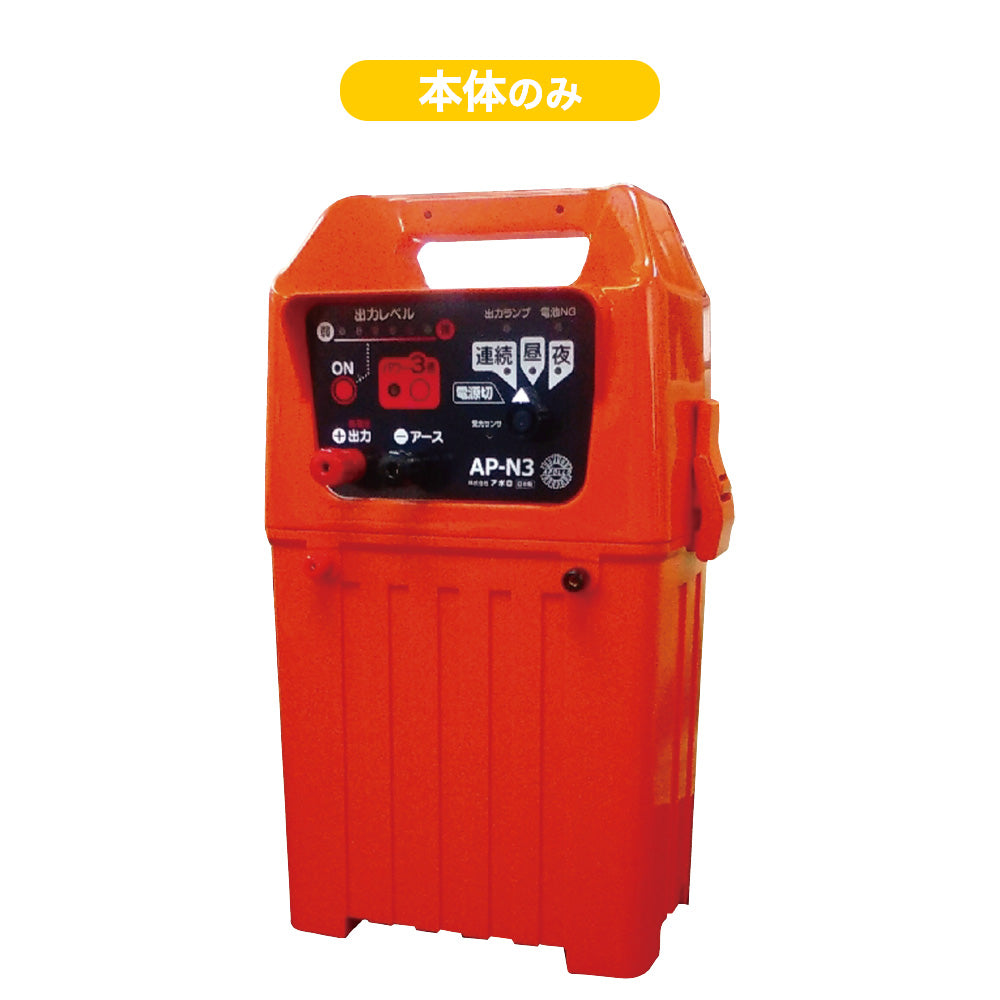

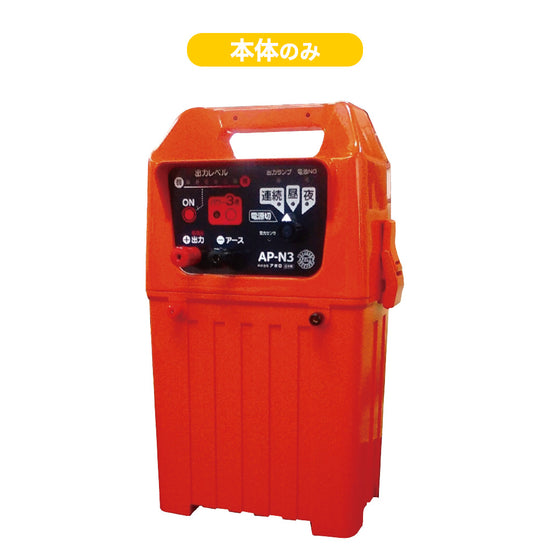

Apollo electric fence (body only) AP-N3
Apollo electric fence (body only) AP-N3
- 出荷日目安:
- Ships within 3-4 business days
商品説明
Please check before ordering
○It is the sale in the body simple substance. If you are looking to purchase poles and wires, please see this page where you will find all the materials you need to install an electric fence.
○The effective distance per unit is 3,000m to 5,000m. *Varies depending on installation conditions.
○ Works with 8 single alkaline batteries (sold separately) or external power supply. It can be used for 12 hours a day, about 30 days with a dry battery, and about 45 days with a 28Ah battery. A solar panel is not normally included (can be retrofitted). Click here for the 3000m effective distance type with solar panel .
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes, mounting brackets, etc. separately according to the ground of the installation location.
○Although this device is rainproof, install it on a brick or a wooden pole to prevent it from being submerged in water.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.
to install an electric fence
To install an electric fence, you need a main body (power supply) set and an electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.

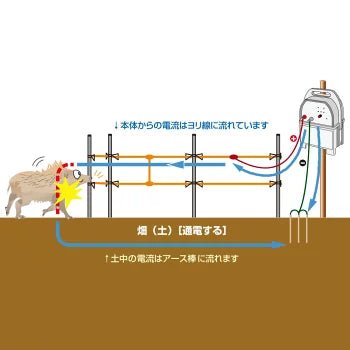

Main unit (power supply) set
A power supply unit for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, a main unit mounting bracket, and a voltage detector (tester) are included as a set. (Accessories vary depending on the manufacturer.)
electric wire set
Please combine the rope (electric wire) for transmitting electric shock, the strut for stretching the rope, the insulator, and the gate clip to be installed at the entrance according to the length of the electric fence you are using. Also sold as a set.
Ultimate anti-animal measures with an electric fence from a specialized manufacturer
Supports 4 types of power supplies
The maximum voltage is about 10,000V, which is the maximum voltage that can be produced by domestically produced electric fences. Can be used with 4 power sources: single alkaline dry cell, 12V battery (cord sold separately), 100V power supply (AC adapter sold separately), solar panel (battery and panel sold separately). Since the battery for automobiles such as light cars can be stored in the main unit, it prevents deterioration of the battery.
Outstanding ease of use
Effective fence line distance can be covered up to 5,000m in high power mode. When the battery level is low, the power lamp flashes to notify you when it's time to recharge the battery or replace the battery.
It is also possible to set the operating time
It is also possible to detect the brightness of the surroundings and automatically operate "drinking during the day" and "only at night". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the bright day. "Night": Operates only at night when it gets dark.)

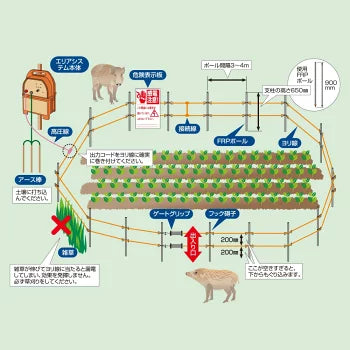

Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The standard distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more
Product specifications
| 入力電源（DC） | 単一アルカリ乾電池×8（1日12時間使用で約50日稼働します）、12Vバッテリー（別売）、ACアダプター（別売）、ソーラーパネル（別売） |
|---|---|
| 出力電圧（DC） | 約10,000Ｖ |
| 本体出力ランプ | 高圧が出力されている時に点灯します。 |
| 本体外形寸法 | 巾280mm×奥行195mm×高さ435mm |
| 本体重量 | 約3.0kg |
| 付属品 | 本体、アース棒3連、高圧線、危険表示板、保証書付取扱説明書、内部配線用コード |
| ※乾電池は付属しません。 |
