Stainless wire 20m roll (φ0.72)
Stainless wire 20m roll (φ0.72)
- 出荷日目安:
- Ships within 3-4 business days
商品説明

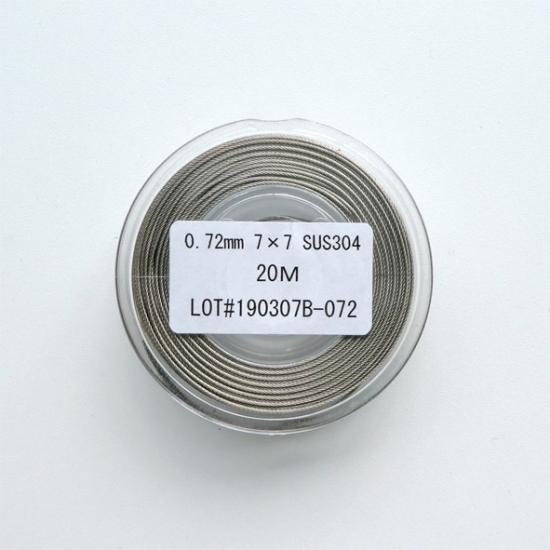

It is a 20m roll of 7*7 stainless steel wire that is ideal for bird-proof wire and is durable. Place posts (sold separately) at 2m intervals and use springs (sold separately) at corners and ends to moderate wire tension.
It is also used in industrial robots and uses 7 x 7 stainless steel wire that is ideal for straight line use and is durable. We have adopted a wire diameter of φ0.72 that is neither too thin nor too thick, which is ideal for pigeon countermeasures. * 50m and 100m rolls are also available.
Installation method
How to make anti-bird wire
●Stand up pillars at 2m intervals and stretch the wires.
●Use a spring every 4m. For example, if you use three posts at a height of 4m, you can simply pass the wire through the hole in the center post. However, when stretching the wire in an L-shape or U-shape, be sure to use springs at the corners.
●Also, please be sure to use the struts for the terminal struts.
●The spring can be either a spring or a one- touch spring . When using the spring, prepare the same number of sleeves ( aluminum sleeves or stainless steel sleeves ).
★ Installation example for 10m
Approximate required quantity of each component
2m | 10m | 20m | 50m | 100m | ||
---|---|---|---|---|---|---|
In the case of 1-tier | strut | Two | 6 | 11 | 26 | 51 |
wire | 2.5m | 11m | 22m | 55m | 110m | |
Spring | 2 pieces | 6 | 10 pieces | 26 pieces | 50 pieces | |
In the case of two-tiered | strut | Two | 6 | 11 | 26 | 51 |
wire | 5m | 22m | 44m | 110m | 220m | |
Spring | Four | 12 pieces | 20 pieces | 52 pieces | 100 pieces |
Part names of bird-proof wire set
Select each component according to the installation location.
1: Bird repellent wire A wire that is stretched to prevent birds from flying.
Click here for a list of wire products
2: It is a spring for stretching the spring wire with appropriate tension.
Click here for a list of spring products
3: It is a prop to stretch the prop wire. Various types are available depending on the installation location.
Click here for a product list of struts
4: Used as necessary when installing in a bandpipe-like location.
Click here to purchase the band
Product specifications
素材 | ステンレス製(SUS304) |
---|---|
長さ | 20m |
径 | φ0.72mm |
