Stainless wire 50m roll (φ0.72)

Stainless wire 50m roll (φ0.72)

出荷日目安:: Ships within 3-4 business days

Product variants

¥5,250

~~¥5,250~~ ¥5,250

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

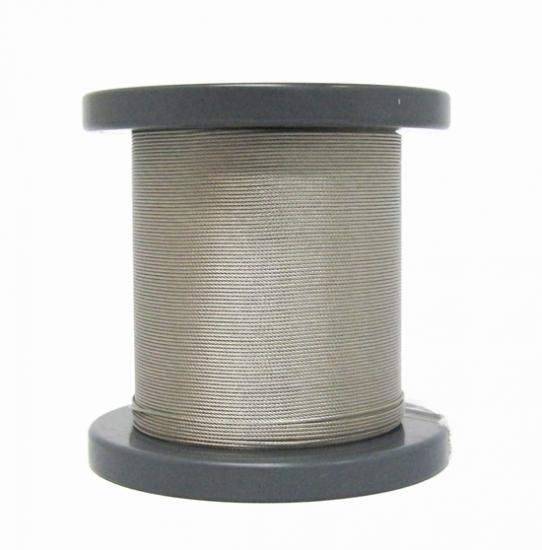

A 50m roll of 7*7 stainless steel wire that is ideal for bird-proof wire and durable. Place posts (sold separately) at 2m intervals and use springs (sold separately) at corners and ends to moderate wire tension.

It is also used in industrial robots and uses 7 x 7 stainless steel wire that is ideal for straight line use and is durable. We have adopted a wire diameter of φ0.72 that is neither too thin nor too thick, which is ideal for pigeon countermeasures. * 20m and 100m rolls are also available.

Installation method

How to make anti-bird wire

●Stand up pillars at 2m intervals and stretch the wires.

●Use a spring every 4m. For example, if you use three posts at a height of 4m, you can simply pass the wire through the hole in the center post. However, when stretching the wire in an L-shape or U-shape, be sure to use springs at the corners.

●Also, please be sure to use the struts for the terminal struts.

●The spring can be either a spring or a one- touch spring . When using the spring, prepare the same number of sleeves ( aluminum sleeves or stainless steel sleeves ).

★ Installation example for 10m

Approximate required quantity of each component

		2m	10m	20m	50m	100m
In the case of 1-tier	strut	Two	6	11	26	51
	wire	2.5m	11m	22m	55m	110m
	Spring	2 pieces	6	10 pieces	26 pieces	50 pieces
In the case of two-tiered	strut	Two	6	11	26	51
	wire	5m	22m	44m	110m	220m
	Spring	Four	12 pieces	20 pieces	52 pieces	100 pieces

Part names of bird-proof wire set

Select each component according to the installation location.

1: Bird repellent wire A wire that is stretched to prevent birds from flying.
Click here for a list of wire products

2: It is a spring for stretching the spring wire with appropriate tension.
Click here for a list of spring products

3: It is a prop to stretch the prop wire. Various types are available depending on the installation location.
Click here for a product list of struts

4: Used as necessary when installing in a bandpipe-like location.
Click here to purchase the band
