• バードブロッカー スライド金具【屋外用超強力両面テープ付】 1103005
1 6

Bird blocker slide bracket [with super strong double-sided tape for outdoor use]

Bird blocker slide bracket [with super strong double-sided tape for outdoor use]

出荷日目安:
Ships within 3-4 business days
¥1,790
¥1,790 ¥1,790
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

Ideal for installing fences on solar panels where it is difficult to set up telescopic brackets due to tight roof material steps or shape issues. It is easy to install, just slide the metal fittings according to the thickness of the solar panel and adhere. *Comes with super-strong double-sided tape for outdoor use (manufactured by 3M).

Click here to purchase a fence>>

Click here to purchase extension fittings>>

Attaching the slide bracket


specification content

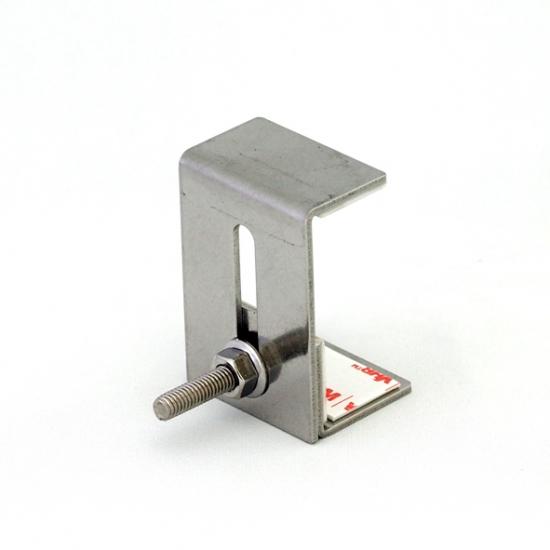

Product name slide bracket
size Width 40mm /85g
Bolt length M6×25mm
Installable thickness 25 to 52 mm (solar panel thickness)
Material Stainless steel (SUS304)

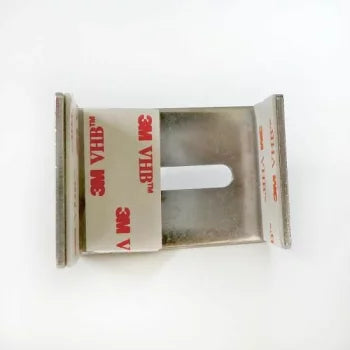

With 3M super strong double-sided tape for outdoor use

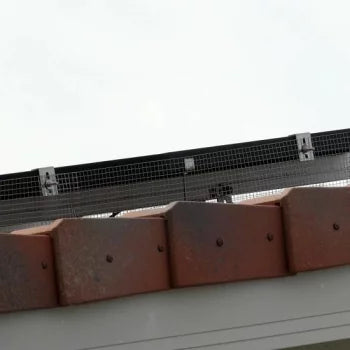

Attaching the slide bracket

Sliding fittings are used when it is difficult to stand telescopic fittings due to tight steps in the roof material or problems with the shape.

Slide and glue the metal fittings according to the thickness of the solar panel, and attach the fence.

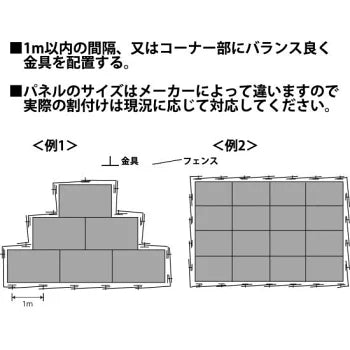

allocation


〇 Consider the allocation to install the bird blocker. Arrange metal fittings in a well-balanced manner within 1m intervals or corners.

〇Since the size of the panel differs depending on the manufacturer, the actual layout should be handled according to the current situation.

〇 If there is unevenness such as a tiled roof, bend the bottom of the telescopic metal fittings and install and adhere them. Make a cut in the fence with metal scissors or nippers, and pour it outward, being careful not to leave any gaps.

Attachment of slide fitting Allocation

3 types of fence mounting brackets to choose from

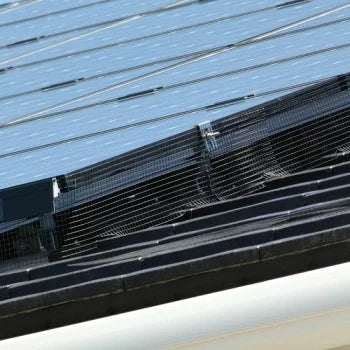

The fence can be securely installed on uneven roofs such as tiled roofs to flat roofs.

hook fittings Hook metal fittings Hook metal fittings can be used if the frame of the solar panel is U-shaped. It can be done faster and at a lower cost than before.
Learn more>>
telescopic fitting You can choose the size according to the height of the gap between the elastic brackets . By bending the bottom of the expansion fitting with pliers, it is possible to make it fit in curved areas such as roof tiles. Learn more>>
slide bracket Used when it is difficult to use expansion fittings due to tight steps or shape problems in the slide fitting roof material. Slide and glue the metal fittings according to the thickness of the solar panel, and install the fence. Learn more>>

Product specifications

サイズ 幅40mm /85g　ボルト長 M6×25mm
素材 ステンレス (SUS304) （屋外用超強力両面テープ付）
設置可能厚み 25～52 mm（太陽光パネル厚み）
