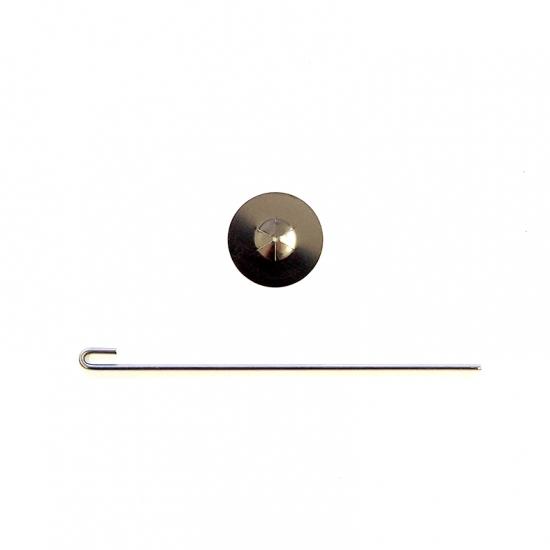

Bird blocker hook fitting (1 piece)

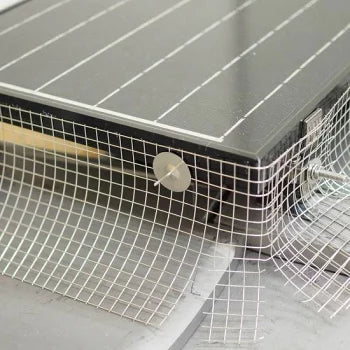

If the frame of the solar panel is U-shaped, this hook metal fitting can be used. It is possible to securely install the fence by hooking the hook metal fittings on the frame and fixing it with the stopper.
*For SHARP panels only, other compatible products are available. Please contact us after confirming the panel you are using.

Click here to purchase a fence>>

Construction method

allocation

〇 Hook fittings are used at a pitch of about 34 cm per fence.

*Please be careful when installing the hook bracket as it cannot be reused once attached.

*If you use hook fittings, you will need to prepare the hook fittings and fence again when attaching or detaching the fence for maintenance of solar equipment.

①Insert the metal fittings

Insert the hook metal fittings into the fence.

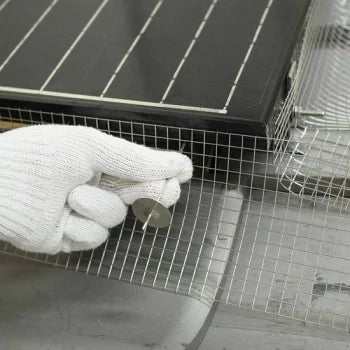

② Fix the fence

After pulling the hardware and hooking the hook to the frame, push the stopper to secure the fence.

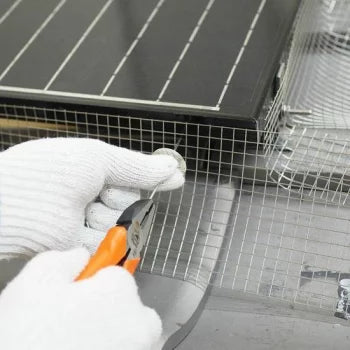

③Cut the surplus hook fittings

After fixing, cut the surplus hook metal fittings.

Removal of hook fittings during maintenance

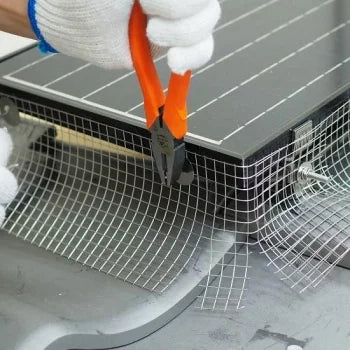

① Cut the fence <

Cut the fence at the maintenance point.

②Fence bending

Fold the fence up.

(3) Pulling out the hook

Unhook and pull out.

3 types of fence mounting brackets to choose from

The fence can be securely installed on uneven roofs such as tiled roofs to flat roofs.

Hook metal fittings Hook metal fittings can be used if the frame of the solar panel is U-shaped. It can be done faster and at a lower cost than before.
Learn more>>

You can choose the size according to the height of the gap between the elastic brackets . By bending the bottom of the expansion fitting with pliers, it is possible to make it fit in curved areas such as roof tiles. Learn more>>

Used when it is difficult to use expansion fittings due to tight steps or shape problems in the slide fitting roof material. Slide and glue the metal fittings according to the thickness of the solar panel, and install the fence. Learn more>>
