Trap for wild boars and deer Strong footboard + pedestal set

Trap for wild boars and deer Strong footboard + pedestal set

出荷日目安:: Ships within 1-2 business days

選択してください

S: Short diameter 12 cm x Long diameter 18 cm x Pedestal height 8 cm - ¥3,618 M: Short diameter 15 cm x Long diameter 20 cm x Pedestal height 8 cm - ¥3,618 L：短径18cm×長径22cm×台座高さ8cm - ¥3,800 Bulk purchase of 10 S size Bulk purchase of 10 M size 10個まとめ買いで10％割引！Lサイズ - ¥34,200

Product variants

¥3,618

~~¥3,618~~ ¥3,618

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

This is the sales page for a set of the most popular tying trap strong type, which includes a treadle and a base. Three sizes are available, so please choose the size that fits your springs and local regulations.

Please check before ordering

The diameter of the trap varies depending on the area where the trapping activity is conducted. Please check in advance which of the following 1 to 3 applies to you and select the appropriate size.

1: In areas where traps with a ring diameter (or short diameter in the case of oval traps) of more than 12 cm are prohibited in order to prevent the misidentified capture of black bears and other predators.

2: Areas where the restrictions in 1 above have been relaxed and traps with a ring diameter (or short diameter in the case of oval traps) of more than 15 cm are prohibited.

3: Areas where traps with a ring diameter exceeding 12 cm can be used to capture the increasing number of wild boars and Japanese deer.

*Regulations may vary by area even within the same prefecture. For details, please contact the local government division in charge of the area where the trapping activity will take place.

Sold separately as a treadle + pedestal

This page is a single sales page for the footboard and base. Recommended for those who make their own springs or those who want to replace the broken treads. * When setting up, it is necessary to set the tread and spring. Click here for a product that includes a tread and pre-assembled springs.

tread

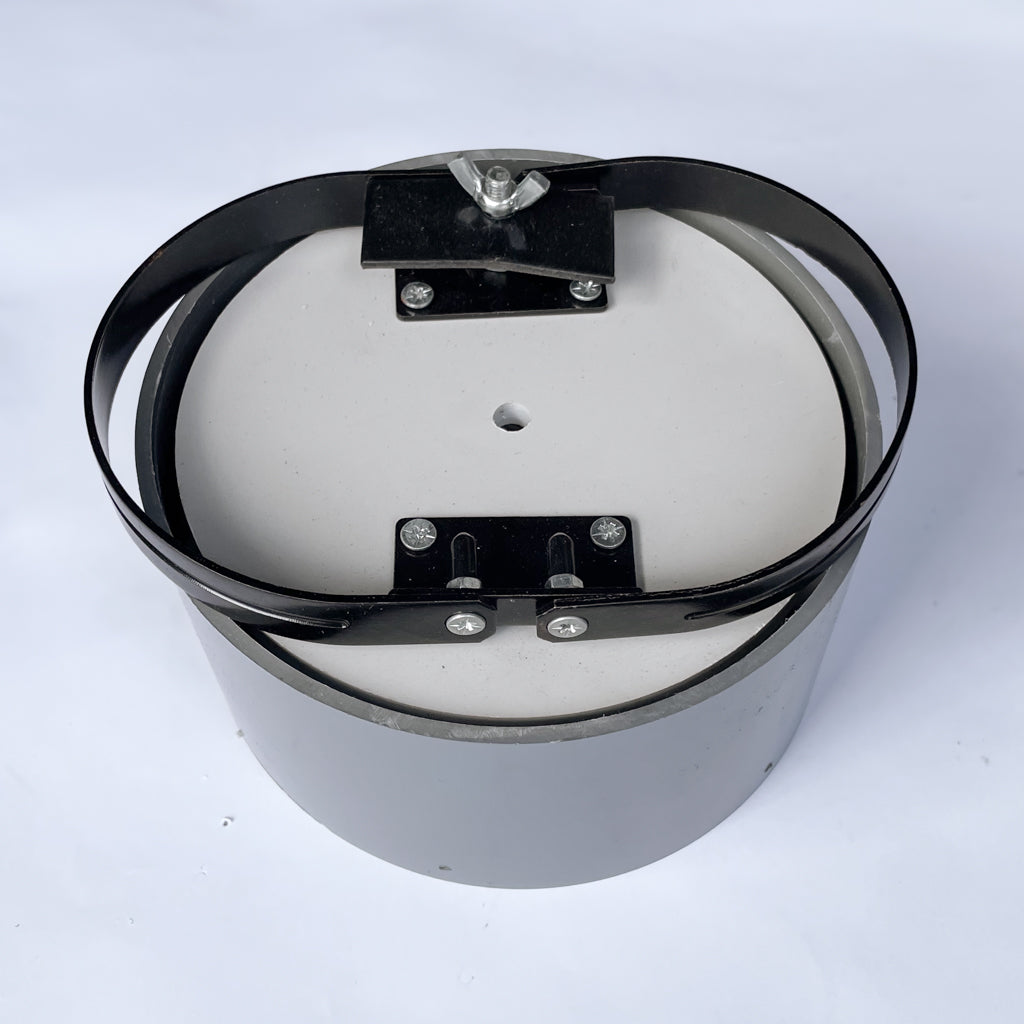

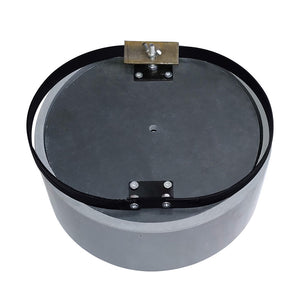

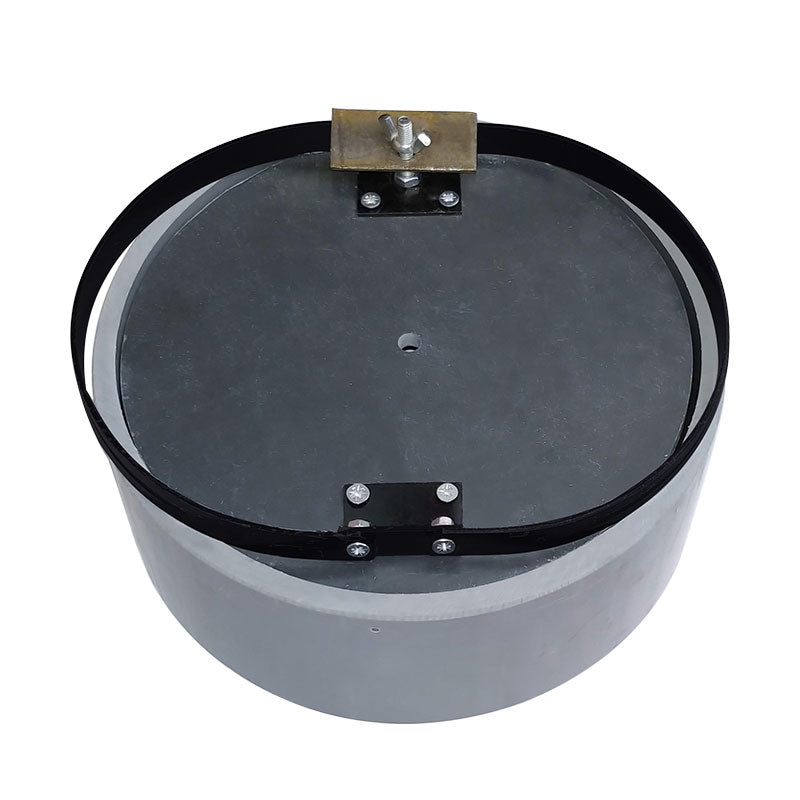

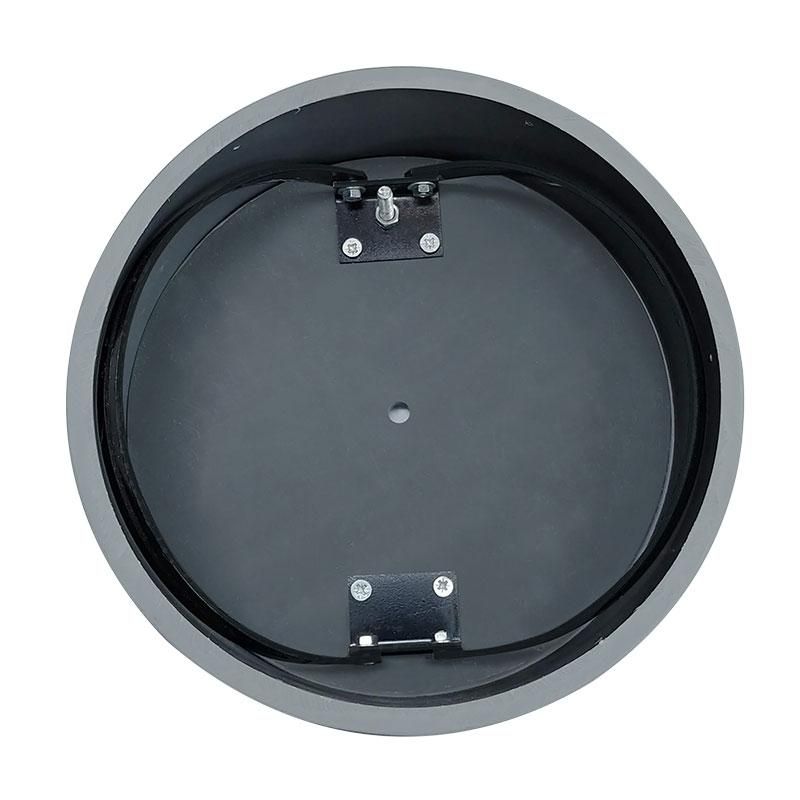

Bury the attached PVC pipe pedestal in the ground and place the footboard part on it. When the animal steps on the tread, the tread drops into the pedestal and the rail bounces upwards.

Tying Trap Operation Video

spring part

This is an essential part of the tying trap, consisting of a wire and a spring, etc. The loop of wire (snare), which is used to tie the animal's leg, is attached to the rail of the springboard, which compresses the spring.

Tying trap capture video

Features of Tying Trap Tread Strong

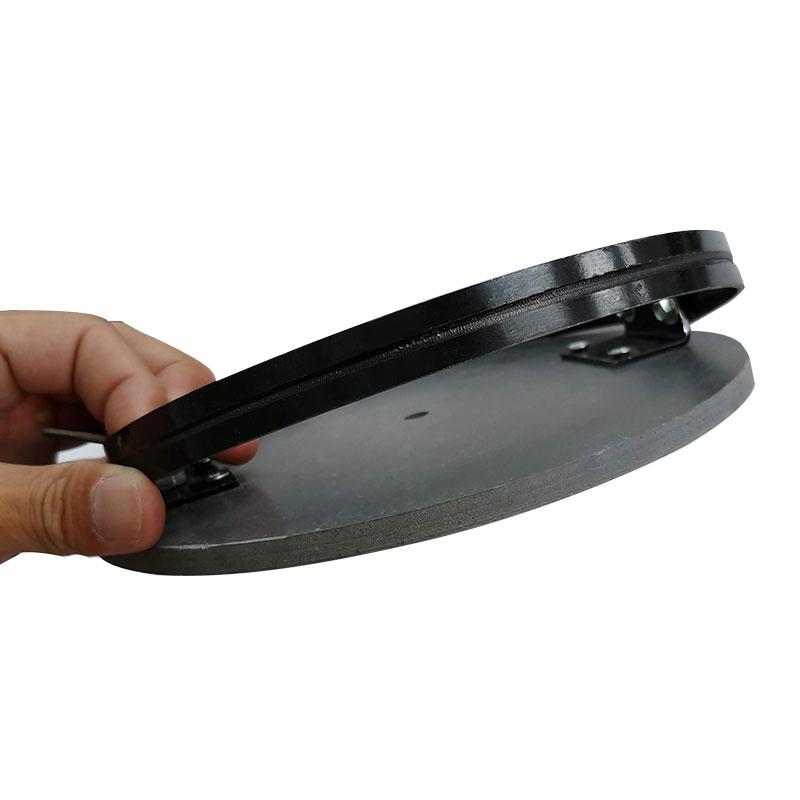

Planks are not made of wood but resin

The treadle board part has been improved from the conventional wooden to resin. The new treads are more durable than the wooden ones, and since they do not absorb water, there is no longer any risk of malfunction due to swelling or peeling caused by water absorption. The new version is also improved to cope with rainy and snowy conditions.

Outburst Prevention Mechanisms

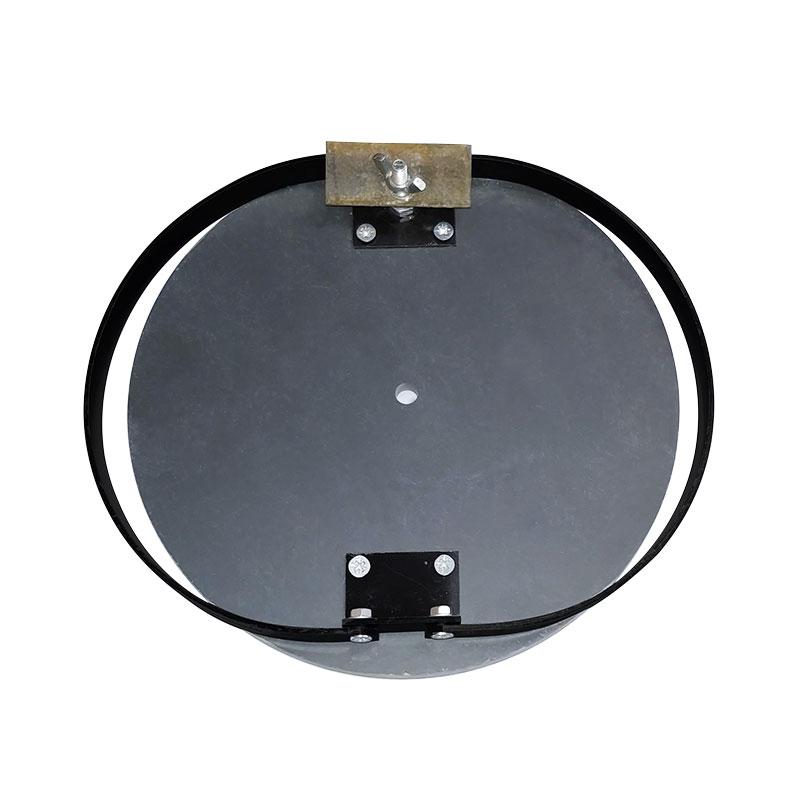

A safety device (holding bracket) is provided to hold down the rail (the part to which the foot-anchoring wire is attached) to prevent malfunction. It can be carried safely even with force applied to the spring. After installation is complete, simply remove the hold-down bracket to complete the set-up.

Adjust the load of tying trap activation

You can adjust the load that triggers the trap.

The treadle set consists of a treadle that the beast steps on and a PVC tube that serves as a base. The base has six holes to which toothpicks can be pointed, and the load under which the treadle falls can be adjusted by the number of toothpicks that are pointed into the PVC tube.

We also sell replacement trap parts.

The treadle can be used many times unless it is broken, but the parts used for the spring portion are consumable. Replacement parts are also available.

Components of a tying trap

We also recommend a DIY kit that is a bargain with each component set.

01: Push spring 02: Wire rope 03: Aluminum sleeve 04: Sarkan

05: shackle 06: tie fitting 07: stopper (single) 08: stopper (double)

09: PVC pipe set 10: Footboard

Product specifications

Size	Pedestal height: 7.5 cm (S), 8 cm (common for M and L)
Country of origin	Japan
Accessories	Instruction manual

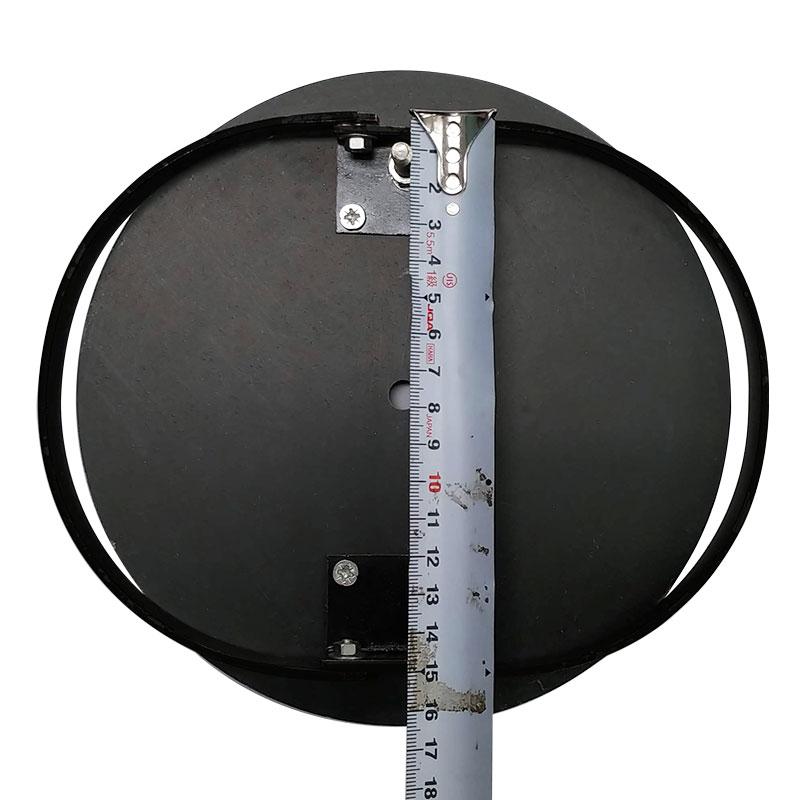

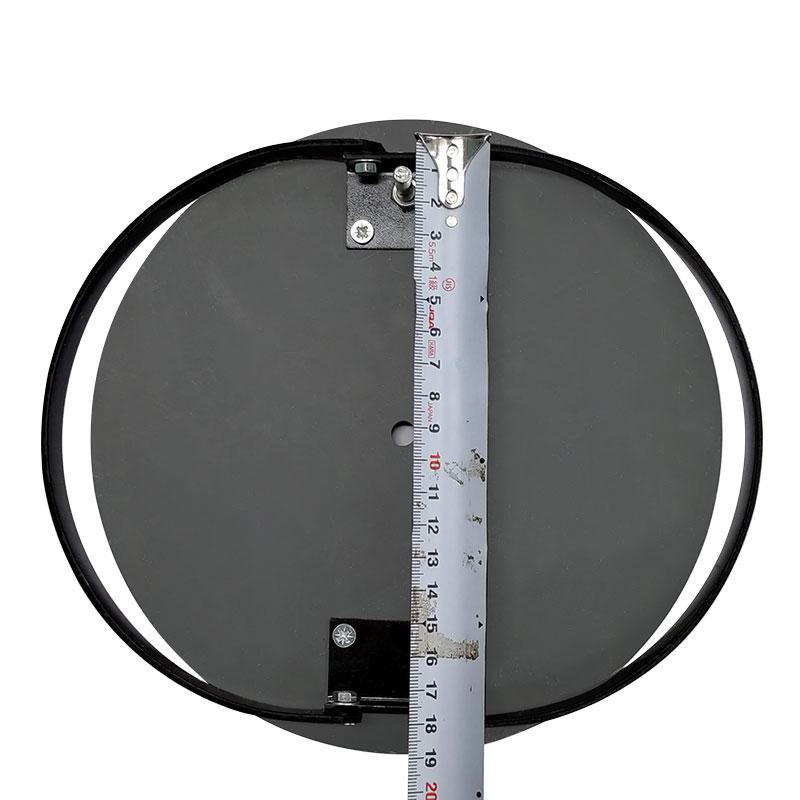

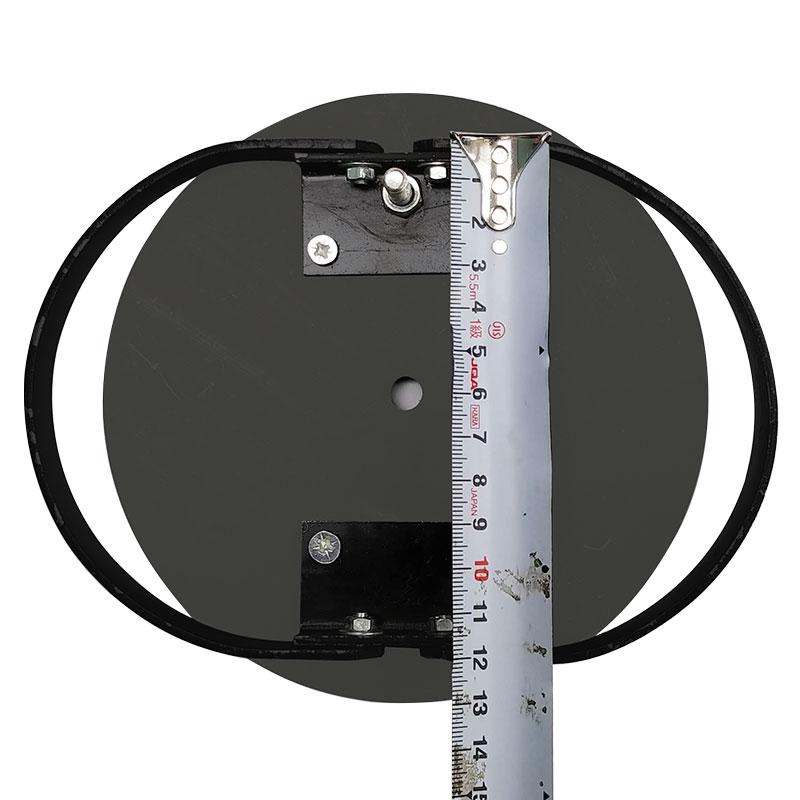

Size	S: 12 cm (short diameter), M: 15 cm (short diameter) x 20 cm (long diameter), L: 18 cm (short diameter) x 22 cm (long diameter)

安心の踏み板

結局これがシンプルで頑丈で使いやすいです。縦埋めのバネで使用していますが、捕獲率も良いです。パイプはカットしてくれるようですが、そもそも、ここまで長い必要はないようにも思います。

この度は当店をご利用いただき誠にありがとうございます。
高評価をいただきましたこと、重ねて御礼申し上げます。

パーツが多いとその分破損の可能性も高いため、私共も結局シンプルな構造が一番馴染みやすいと考えております。
台座高さにつきまして、穴を掘る労力などを考慮してお選びいただけるカスタマイズも行っておりますので、よろしければご検討ください！

https://inohoi.com/products/134-cut

今後とも何卒宜しくお願いいたします。

GOOD

　数年前は腐蝕により耐久性がなかったが、段々と木から樹脂、鉄からステンレス製、ゴムカバー等
改良されていている。さらにネジ部をステンレス製に変えることが望ましい。
　

この度は当店をご利用いただき誠にありがとうございます。
高評価をいただきましたこと、重ねて御礼申し上げます。

至らない点も多いかと存じますが、様々なご意見を元に随時改良を行っております。
より良いものをお届けできるよう努めてまいりますので、今後とも何卒宜しくお願いいたします。
