Aluminum clamp (sleeve oval)

出荷日目安:: 1～2日営業日以内に発送

選択してください

4mm (single item) - ¥20 4mm (Bulk purchase of 100 5% discount) 【12月上旬〜中旬発送】5mm（単品） - ¥23 【12月上旬〜中旬発送】5mm（100個まとめ買い5%割引） - ¥2,091 6mm (single item) 6mm (Bulk purchase of 100 5% discount)

Product variants

~~¥20~~ ¥20

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

よく一緒に購入されている商品

You can catch it even at a very low price★. Boar hoihoi tread for tying traps (tread + pedestal set)

Aluminum clamp (sleeve oval)

¥20（税込）

Kukuri Trap Part Replacement/Self-made Kit 5 pairs + 1 sample

¥12,540（税込）

You can catch it even at a very low price★. Boar hoihoi tread for tying traps (tread + pedestal set)

¥1,800（税込）

総額：

送料：

※北海道・沖縄・離島地域は別途1,650円（税込）いただきます

商品説明

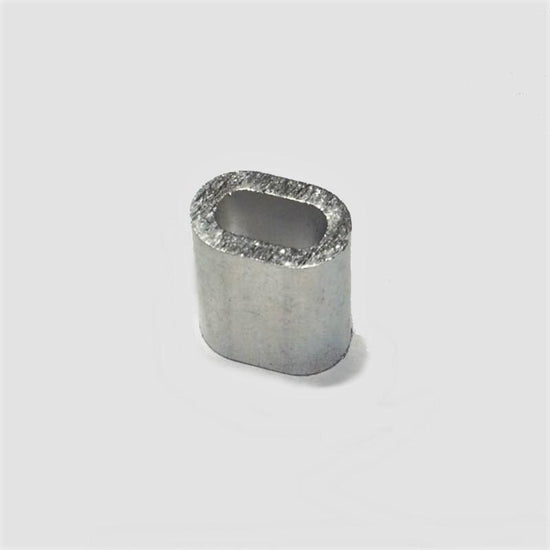

Aluminum clamp tube (aluminum sleeve) used for bundling φ4-6mm wire ropes for tying traps. Twice (back and forth) through crimping twice for securing. Four aluminum clamp tubes are used for each pair of leg traps. Use the special swager tool to crimp. *The swager is not included, so please purchase it separately.

How to crimp aluminum clamps

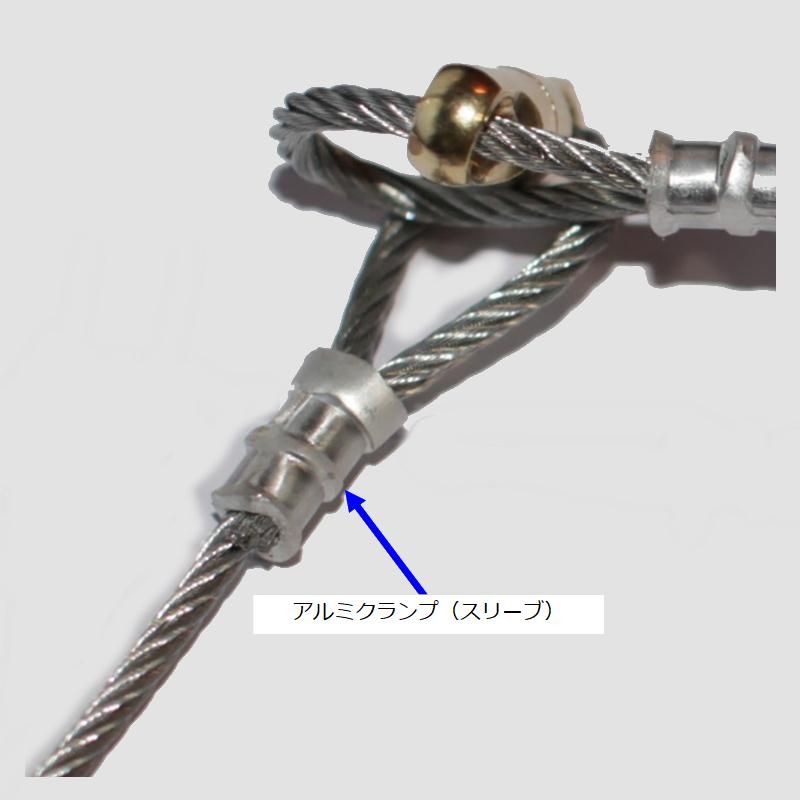

◯ First, pass the wire rope through the hole in the sleeve, fold it back and pass it through again. Determine the size of the wire rope loop and crimp it with a swager. *This product is crimped in two places.

◯ Please refer to the video for how to assemble a kukuri trap, including the crimping method (at the beginning there is a crimping method using an arm swager).

◯ If you use radio pliers instead of crimping pliers to crimp the wire, the wire may not be crimped properly and the wire may come off.

Components of a tying trap

For those who do not have their own tools, we recommend the pre-assembled spring set.
We also accept bulk sales of parts, starting from 1 unit (see the link below).
