Electric Fence SA30DC Body & Post/Electric Wire Set (Perimeter 100m x 2 Tiers) Tiger

Electric Fence SA30DC Body & Post/Electric Wire Set (Perimeter 100m x 2 Tiers) Tiger

出荷日目安:
Ships within 7 business days

選択してください
¥84,364
¥84,364 ¥84,364
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

Please check before ordering

attach an electric fence to a pole

○ This product is a set that includes the main body + 100m circumference x 2-tiered struts and electric wires. This set is recommended for wild boar countermeasures on a site with a circumference of 100m.

○The maximum cable length per unit is 3500m. *Varies depending on installation conditions.

○ Runs on a single battery (sold separately) or an external power supply. Solar panel is not included (can be retrofitted). Click here for the type with solar panel

○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.

○Please be careful not to allow children to come near the installation location.

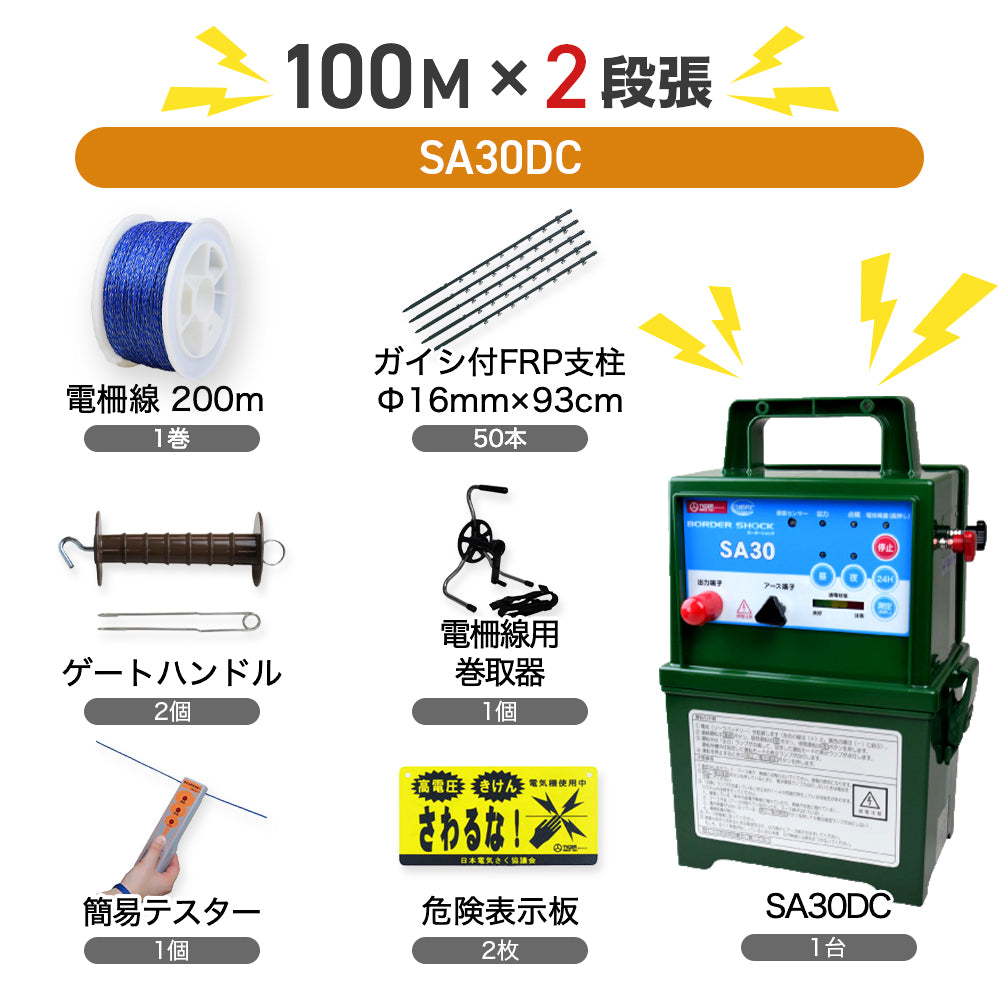

Product composition


This set includes the following A and B necessary for an electric fence. It's a bargain compared to buying each unit.

A: Body set :
Hazard sign plate x 2, 5 ground rods x 1, main body mounting bracket x 1, external battery cord x 1, output cord 3m x 1, instruction manual

B: Wire set :
◯ FRP electric fence post with insulator Φ16mm x height 930mm・・・50

○Gate clip・・・2 pieces

◯Electric fence rope (stainless steel 6 wires) 200m・・・1 roll

◯Quick tester・・・1 piece

◯ Winder ... 1 piece

How to install an electric fence

A full-fledged specification that will not lose to the beast

Standard model body

Rainproof type that can be installed anywhere

The maximum voltage is about 9000V. The VDR output stabilization mechanism automatically detects when the fence line voltage drops and supplies additional current to maintain the voltage. It is also possible to connect a 12V battery to the external terminal with the included external battery cord.

control panel

Outstanding ease of use

The touch panel with switch sound can be easily operated by simply pressing the pictogram button. Also, you can easily check the voltage status with the level meter. (Because the output state is in this device, please check with a dedicated tester to manage the electric fence.)

night only mode

It is also possible to set the operating time

It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)

Example of installation method for each animal

Boar measures

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.

measures against deer

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30cm. Connect the connecting lines at intervals of 50 meters.

measures against monkeys

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Electric Fence Body Set (Main Body + Danger Sign Board + Earth Rod + High Voltage Wire + Voltage Detector) Electric fence set (circumference 100m x 2 steps) For those who have a separate wire (fence line) and are looking for the main unit (power supply). A version with a solar panel is also available. Learn more>>
Electric Fence NSDSR-5W & Post/Electric Wire Set (Perimeter 100m x 2 Stages) Electric Fence NSDSR-5W & Post/Electric Wire Set (Perimeter 100m x 2 Stages) It is a bargain set that comes with solar panel power generation. By reducing the frequency of battery replacement, you can save time and money. Learn more>>
Electric Fence Components Individual Sales (Electric Wires, Supports, Gate Clips, Insulators, etc.) Electric fence material sold separately If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>

Product specifications

入力電源（DC） 12V専用乾電池（付属品）、乾電池（単一※別売）、ソーラーパネル＋充電式バッテリー（別売）、ACアダプター（別売）
出力電圧（DC） 約9,000Ｖ
使用環境 防雨型（IPX5相当）
最大有効さく線距離 3,500m
運転モード 24時間連続、昼、夜
バッテリーチェック機能 動作停止時に「停止ボタン」を押すことでランプ点灯
通電状態チェック機能 漏電検知時に点検ランプが点滅、電圧測定ボタンを押して通電状態をレベルメーターで表示
電池寿命 約30日（24時間連続運転モード、付属12V乾電池の場合）※使用状況により変動
出力周期 約1.2秒
外形寸法 幅250mm×高さ365mm×奥行170mm
重量 4.3kg
