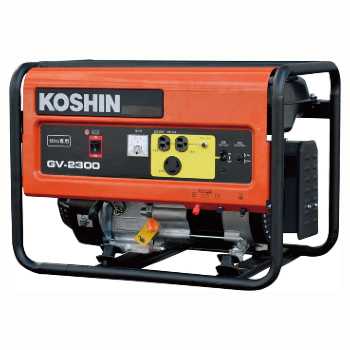

Koshin KOSHIN Standard Generator GV-2300
Koshin KOSHIN Standard Generator GV-2300
- 出荷日目安:
- Ships within 5 business days
商品説明
Product information
Adoption of a special filter in the fuel tank
A special fuel filter is used to filter out moisture in the fuel tank, reducing corrosion of the carburetor and poor engine starting due to water.
● With rust adsorption function in the fuel tank
A powerful magnet is built into the fuel tank to prevent clogging of the fuel filter and carburetor.
●Operation procedure label included
Easy to operate even for beginners!
There is a display on the main unit that shows the operating procedure.
*Cannot be used indoors.
Exhaust gas from the muffler of the generator contains a lot of carbon monoxide, so it is very dangerous to use it indoors or outdoors in poorly ventilated areas as it may cause carbon monoxide poisoning.
Product specifications
定格周波数 | 60Hz |
---|---|
エンジン名称 | 工進K210 |
形式 | 空冷4サイクルガソリンエンジン |
交流 | 定格出力 2.3kVA/定格電圧/電流 100V/23A |
直流 | 定格電圧/電流/12V/8.3A |
燃料タンク容量 | 12.6L |
総排気量 | 212cc |
使用燃料 | 自動車用無鉛ガソリン |
連続運転可能時間 | 定格負荷~1/4負荷 7~13.2h |
騒音値(定格負荷~1/4負荷) | 70.3~68.9dB(A)(※7m,定格負荷~1/4負荷) |
オイル量 | 0.5L(エンジンオイルSE級以上SAE10W-30または10W-40) |
点火プラグ | F6RTC(TORCH) |
始動方式 | リコイルスターター方式 |
ACコンセント | 合計23Aまで(ACコンセント:15A×2個、30A×1個) |
DC端子 | 12V/8.3A |
本体サイズ | 615×445×457mm |
本体重 | 42kg |
