Nishiden Electric Fence NSDSR-12W Body & Post/Electric Wire Set (Perimeter 100m x 2 Steps)
Nishiden Electric Fence NSDSR-12W Body & Post/Electric Wire Set (Perimeter 100m x 2 Steps)
- 出荷日目安:
- 5営業日以内に発送
商品説明
Please check before ordering
○ This product is a set that includes the main body + 100m circumference x 2-tiered struts and electric wires. This set is recommended for wild boar countermeasures on a site with a circumference of 100m.
○The maximum cable length per unit is 3000m. *Varies depending on installation conditions.
○ Comes with a 12W solar panel and a battery for solar charging that does not run out of charge even during short periods of sunlight such as winter and rainy season . You can drive it without purchasing a power supply separately. Runs on 8 AA alkaline batteries (sold separately) or an external power supply. Click here for the type without solar panel
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.

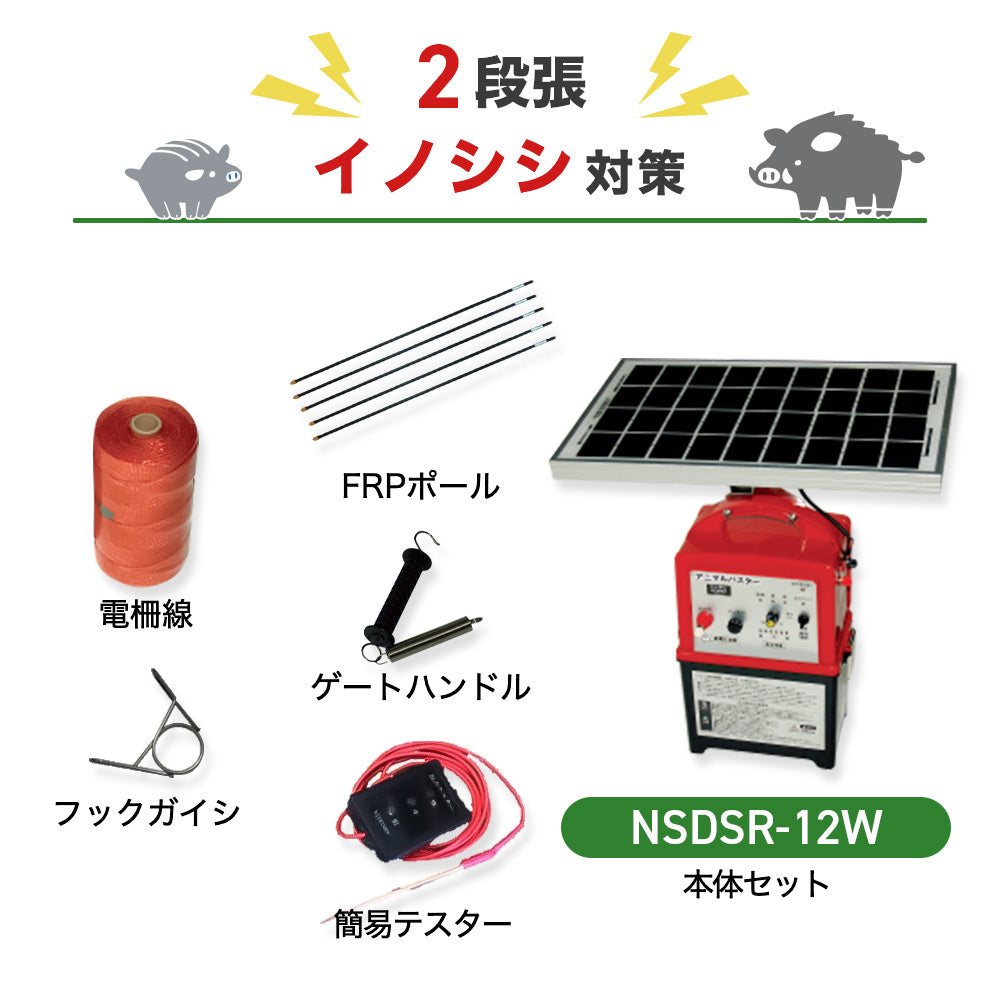

Product composition
This set includes the following A and B necessary for an electric fence. It's a bargain compared to buying each unit.

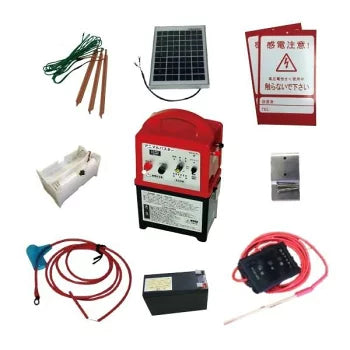

A: Body set :
Hazard sign plate x 3 Ground bar x 1 High voltage wire x 1 Body mounting bracket x 1 Battery case x 1 Voltage detector x 1 Instruction manual

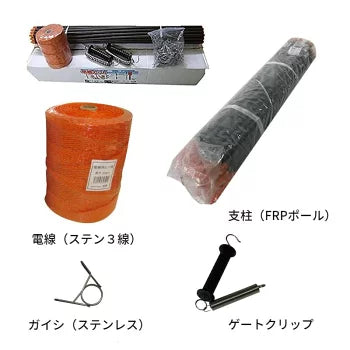

B: Wire set :
◯FRP electric fence support Φ14mm x height 900mm・・・30
◯Stainless steel insulator 14mm・・・62 pieces
○Gate clip・・・2 pieces
◯Electric fence rope (stainless steel 3 wires) 250m・・・1 roll
A full-fledged specification that will not lose to the beast
Compatible with 3 types of power supplies
It supports three types of dry cell, external battery, and solar power generation. The dry cell and battery inputs are on separate circuits, and even if they are connected at the same time, the one with the higher voltage is automatically selected, so it is convenient to use them together.
Outstanding ease of use
You can see the remaining battery level at a glance (“strong” lights up in green, “medium” in yellow, and “weak” in red). When the battery level turns red, an audible beep sounds at intervals to let you know when it's time to change the battery.
It is also possible to set the operating time
It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)

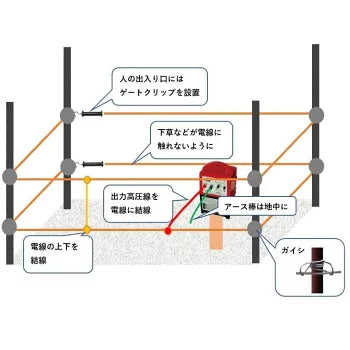

Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
For those who have a separate wire (fence line) and are looking for the main unit (power supply). A version with a solar panel is also available. Learn more>>
Product specifications
| 本体入力電源（DC） | 乾電池（1.5V×8個※別売）、外部電源（鉛蓄電池バッテリー等）12V12Ah |
|---|---|
| 本体出力電圧（DC） | 約9,000Ｖ |
| 本体電池寿命 | 充放電 300回～500回 ※使用状況により異なります。 |
| 本体出力周期 | 1.0～1.2秒 |
| 本体出力ランプ、出力音 | 作動時（約3,500Ｖ以上）に点灯し、ピッ音が鳴ります。 |
| 本体外形寸法 | （約）巾210mm×奥行160mm×高さ350mm ※ソーラー部分を除く |
| 本体重量 | 約9.5kg |
