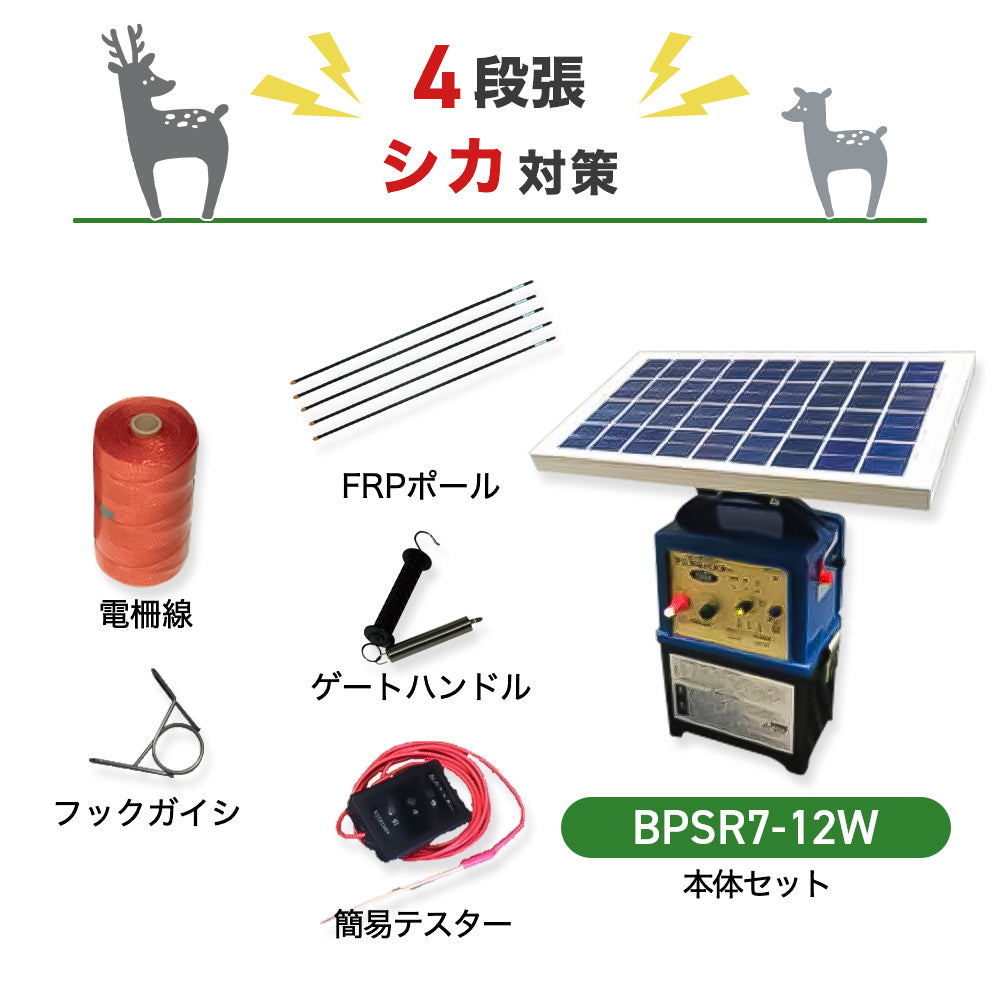

Nishiden Electric Fence Big Power Animal Buster BPSR7-12W (Body Set Only)

Nishiden Electric Fence Big Power Animal Buster BPSR7-12W (Body Set Only)

出荷日目安:
5営業日以内に発送

選択してください
¥105,455
¥115,727 ¥105,455
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

・Equipped with positive/negative/reverse connection protection circuit for input power supply
・Uses a rotary switch that minimizes switch malfunction.
・This circuit is designed to prevent program runaway and malfunction.
・Set the appropriate voltage level position of the battery
・Water-repellent treatment on the substrate surface protects against humidity
・Built-in piezoelectric speaker, power-saving and audible notification
・About double the distance and output power of the conventional 3k type
・There is little output voltage drop, and the leakage countermeasure against weeds is strengthened.
・Excellent for soil with poor grounding such as bedrock, and for multi-tiering for monkeys.
・At the time of output, the output lamp indicates strong, medium, or weak.
・When the output is off, the remaining battery level is displayed as strong, medium, or weak by checking the battery.
・Easy connection to a 12W solar panel and a battery for a standard car (sold separately) enables long-time operation.
・Equipped with a function to keep the output constant even if the input voltage drops

Please check before ordering

attach an electric fence to a pole

○It is the sale in the body simple substance.

○The maximum cable length per unit is 6000m. *Varies depending on installation conditions.

○ Operates with a solar panel and a 12V lead-acid battery for ordinary cars.

○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.

○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.

○Please be careful not to allow children to come near the installation location.

A full-fledged specification that will not lose to the beast

Over-discharge protection

Reliable and secure circuit design

The maximum voltage is about 9000V. In general, weeds and improper installation often cause electric leakage and voltage drop, but this device is designed to prevent the voltage from dropping even in such cases, so it can give a solid shock. increase.

control panel

Outstanding ease of use

Various output lamps make it easy to see the output status of the battery and voltage at a glance. There is also a function to keep the output constant even if the input voltage drops, making it extremely easy to use.

night only mode

Achieving optimal design in various locations

It is a product with various ingenuity, such as a rotary switch that rarely malfunctions, humidity countermeasures with water repellent treatment, and power saving with a piezoelectric speaker.

Example of installation method for each animal

Boar measures

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.

measures against deer

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.

measures against monkeys

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Electric Fence Body Set (Main Body + Danger Sign Board + Earth Rod + High Voltage Wire + Voltage Detector) Electric fence set (circumference 100m x 2 steps) For those who have a separate wire (fence line) and are looking for the main unit (power supply). A version with a solar panel is also available. Learn more>>
Electric Fence NSD-5 & Post/Electric Wire Set (Perimeter 100m x 2 Stages) Electric Fence NSD-5 & Post/Electric Wire Set (Perimeter 100m x 2 Stages) This set is recommended as a countermeasure against wild boars. A complete set of equipment needed to install an electric fence. Learn more>>
Electric Fence Components Individual Sales (Electric Wires, Supports, Gate Clips, Insulators, etc.) Electric fence material sold separately If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>

Product specifications

本体入力電源（DC） 普通車用鉛蓄電池バッテリー 12V(40B-19等)（別売）
本体出力電圧（DC） 無負荷出力　約9000V
本体出力周期 1.0～1.2秒
有効距離 約6,000m
本体出力ランプ、出力音 作動時、出力約7,000Vで緑、約6,000Vで黄、約4,000Vで赤に点灯し、ピッ音が鳴ります
電池確認表示 鉛電池バッテリー10.5V以下で警告音と赤色点灯
ソーラー充電回路 電源ON時のみ入力可能、過充電防止、逆流防止回路付
ソーラーパネル 出力12V12Ｗ
本体外形寸法 （約）巾210mm×奥行160mm×高さ350mm
本体重量 約4kg
