Nishiden Electric Fence NSD-5 Body & Post/Electric Wire Set (Perimeter 100m x 2 Steps)

Nishiden Electric Fence NSD-5 Body & Post/Electric Wire Set (Perimeter 100m x 2 Steps)

出荷日目安:
5営業日以内に発送

選択してください

Regular price ¥33,818
Regular price ¥42,000 Sale price ¥33,818
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

Please check before ordering

attach an electric fence to a pole

○ This product is a set that includes the main body + 100m circumference x 2-tiered struts and electric wires. This set is recommended for wild boar countermeasures on a site with a circumference of 100m.

○The maximum cable length per unit is 3000m. *Varies depending on installation conditions.

○ Operates with 8 AA alkaline batteries (sold separately) or an external power supply. Solar panel is not included (can be retrofitted). Click here for the type with solar panel

○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.

○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.

○Please be careful not to allow children to come near the installation location.

Product composition


This set includes the following A and B necessary for an electric fence. It's a bargain compared to buying each unit.

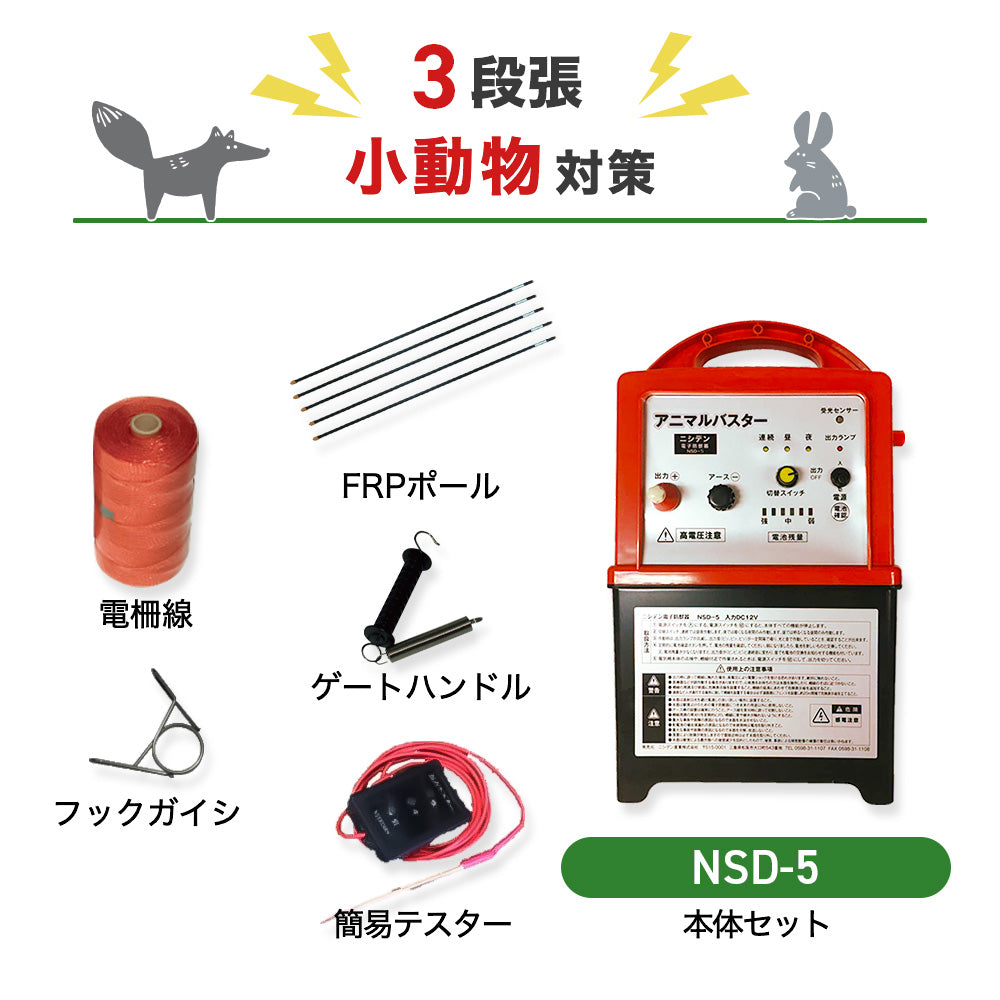

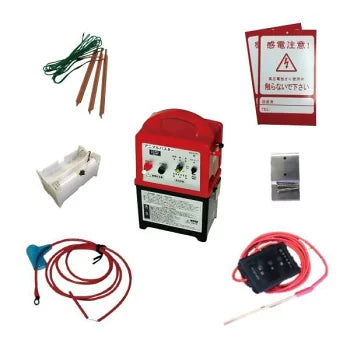

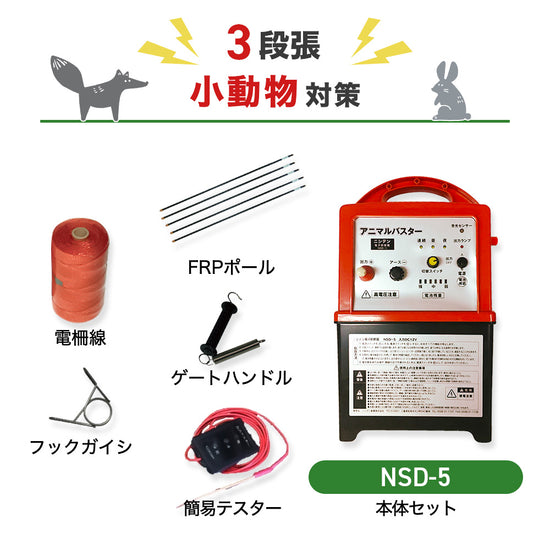

A: Body set :
Hazard sign plate x 3 Ground bar x 1 High voltage wire x 1 Body mounting bracket x 1 Battery case x 1 Voltage detector x 1 Instruction manual

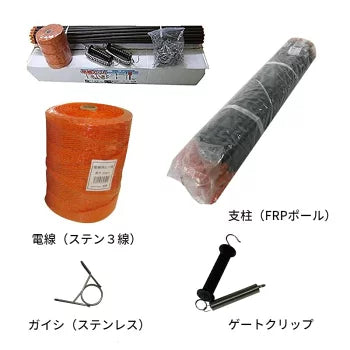

B: Wire set :
◯FRP electric fence support Φ14mm x height 900mm・・・30

◯Stainless steel insulator 14mm・・・62 pieces

○Gate clip・・・2 pieces

◯Electric fence rope (stainless steel 3 wires) 250m・・・1 roll

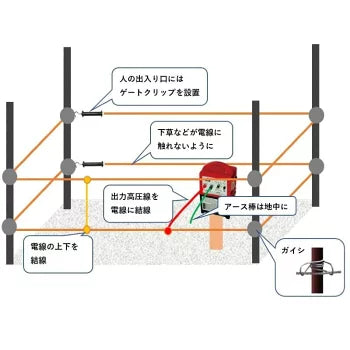

How to install an electric fence

A full-fledged specification that will not lose to the beast

Over-discharge protection

Reliable and secure circuit design

The maximum voltage is about 9,000V. In general, weeds and improper installation often cause electric leakage and voltage drop, but this device is designed to prevent the voltage from dropping even in such cases, so it can give a solid shock. increase.

control panel

Outstanding ease of use

You can see the remaining battery level at a glance (“strong” lights up in green, “medium” in yellow, and “weak” in red). When the battery level turns red, an audible beep sounds at intervals to let you know when it's time to change the battery.

night only mode

It is also possible to set the operating time

It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)

Example of installation method for each animal

Boar measures

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.

measures against deer

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.

measures against monkeys

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Product specifications

本体入力電源(DC) 乾電池(1.5V×8個※別売)、外部電源(鉛蓄電池バッテリー等)12V
本体出力電圧(DC) 約9,000V
本体電池寿命 約30日(1日12時間稼働設定)※使用状況により変動
本体出力周期 1.0~1.2秒
本体出力ランプ、出力音 作動時(約3,500V以上)に点灯し、ピッ音が鳴ります。
本体外形寸法 (約)巾210mm×奥行160mm×高さ350mm
本体重量 約2.1kg
