The electric fence body SA30DC (only as for the body) tiger

The electric fence body SA30DC (only as for the body) tiger

出荷日目安:
Ships within 7 business days
Regular price ¥52,000
Regular price ¥52,000 Sale price ¥52,000
Sale Sold out
Shipping calculated at checkout.
View full details

商品説明

Please check before ordering

attach an electric fence to a pole

○It is the sale in the body simple substance. If you would like to purchase a set of props and wires, please see this page .

○The maximum cable length per unit is 3500m. *Varies depending on installation conditions.

○ Runs on a single battery (sold separately) or an external power supply. Solar panel is not included (can be retrofitted). Click here for the type with solar panel

○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.

○Please be careful not to allow children to come near the installation location.

to install an electric fence

To install an electric fence, you need a main body (power supply) set and an electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.

Electric fence body (power supply) set 2

Main unit (power supply) set

A power supply unit for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, a main unit mounting bracket, and a voltage detector (tester) are included as a set.

electric fence stranded wire set

electric wire set

The set includes a rope (electric wire) for transmitting electric shocks, a post for stretching the rope, an insulator, and a gate clip to be installed at the entrance.

A full-fledged specification that will not lose to the beast

Standard model body

Rainproof type that can be installed anywhere

The maximum voltage is about 9000V. The VDR output stabilization mechanism automatically detects when the fence line voltage drops and supplies additional current to maintain the voltage. It is also possible to connect a 12V battery to the external terminal with the included external battery cord.

control panel

Outstanding ease of use

The touch panel with switch sound can be easily operated by simply pressing the pictogram button. Also, you can easily check the voltage status with the level meter. (Because the output state is in this device, please check with a dedicated tester to manage the electric fence.)

night only mode

It is also possible to set the operating time

It is also possible to detect the brightness of the surroundings and automatically operate "day only" or "night only". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the day when it gets brighter. "Night": Operates only at night when it gets dark.)

Example of installation method for each animal

Boar measures

Wild boar countermeasures (two-tiered)

Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.

measures against deer

Measures against deer (4 layers)

Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.

measures against monkeys

Measures against monkeys (8 columns)

Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).

Product line-up

Product specifications

入力電源(DC) ソーラーパネル+充電式バッテリー(内蔵)
出力電圧(DC) 約8,600V
最大有効さく線距離 300m
運転モード 24時間連続
重量 4.3kg

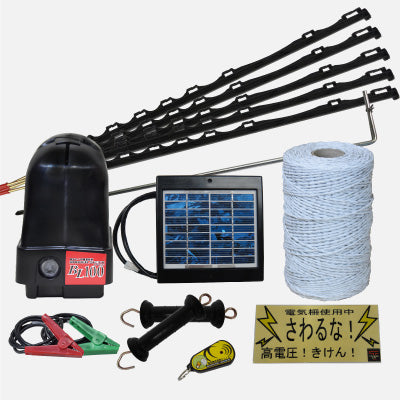

付属品 電気さく本器(BL-100SL)×1台、ガイシ付支柱×30本、アース棒×1本、危険表示板×2枚、ゲートクリップ(黒)×2個、アルカリ乾電池単一形×2本、通電チェッカー×1個
