Stopper Clamp DX (1 pc.)

Stopper Clamp DX (1 pc.)

Ships within 3-4 business days
Regular price ¥620
Regular price ¥620 Sale price ¥620
Sale Sold out
Shipping calculated at checkout.
View full details

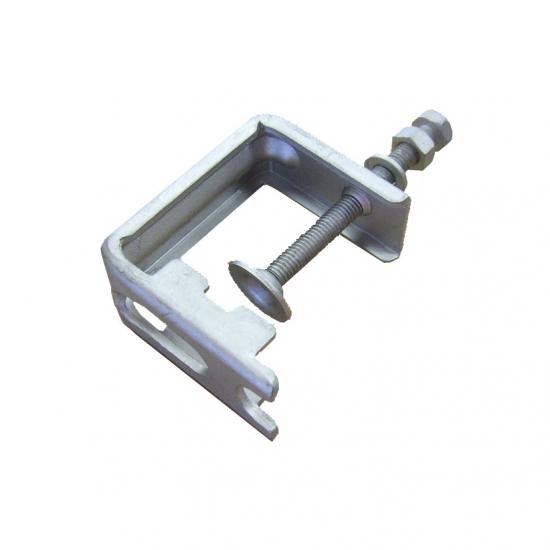

Dedicated clamp metal fittings for bird- proof sword mounts . Demonstrates power when attaching the bird-proof sword mount to H-shaped steel, L-shaped steel, etc. It corresponds to any of type 1, type 2, and type 2L of the bird-proof sword mount. In addition, a high-quality rust prevention treatment (Delta Protect) is used.

★What is Delta Protect?

Chromium-free rust prevention treatment that has cleared ELV regulations, RoHS regulations, and WEEE regulations. A surface treatment that is extremely resistant to rust and can withstand salt spray tests for 600 to 900 hours in accordance with German standard DIN50021=ISO9227.

installation method

■ Mounting locations: H-shaped steel, L-shaped steel, etc.

This product comes with a nut and spring washer to prevent loosening.

1: Fit the fasteners on the left and right sides of the body. *It can be firmly installed by inserting the kenzan into the hole on the top of the clamp (Fig. 1).

2: Tighten the nut firmly using tools such as spanners and Phillips screwdrivers.

*Compatible with an electric screwdriver to shorten construction time. *When using an electric screwdriver, rotate at a low speed to prevent seizure.

*Two clamp metal fittings are required for one bird-proof sword mount.

*Please use strong clamps for H-shaped steel, L-shaped steel, etc. where vibration is a concern, such as bridges and stations.

Click here for the top page of Bochokenzan>>

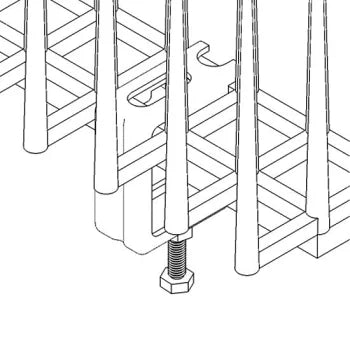

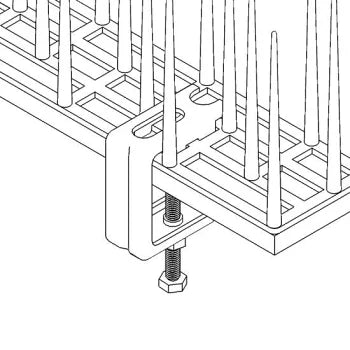

Stopper Clamp DX mounting method

Product specifications

重さ 85g
素材 鉄 (防錆処理済み ※デルタプロテクト)
長さ 挟み幅:35mm
