Arm Swager HSC-600BB

Name: Arm Swager HSC-600BB
Brand: イノホイ オンラインショップ
SKU: kukuriwana-yahoo0048
Price: 26025.0 JPY
Availability: InStock

Arm Swager HSC-600BB

Product variants

¥26,025

~~¥26,025~~ ¥26,025

Sale Sold out

Shipping calculated at checkout.

Quantity

見積もり・お問合せはこちら

View full details

商品説明

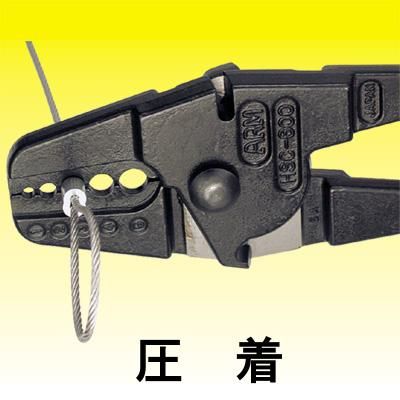

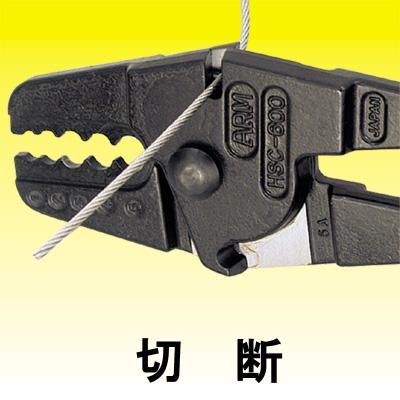

This crimping machine is necessary for crimping clamps in the manufacturing process of tying traps. It is a dedicated tool that can both cut and crimp (swage) wire ropes.

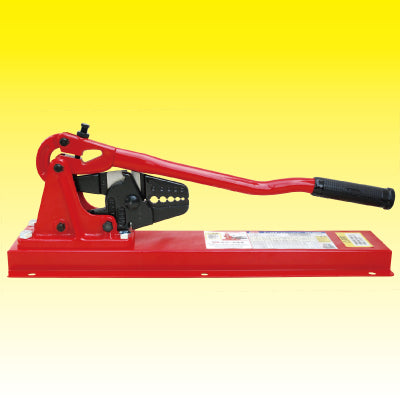

This product is a desktop type, so you can crimp and cut with one hand. If you are looking for a handy type, please see this page .

Features and precautions for use

〇 When crimping, be sure to use a clamp (sleeve) suitable for the wire diameter.

〇In addition to tying traps, it is also very useful for various work using wire ropes, such as preventing falling of signboards / vending machines, preventing ceiling lights from falling, etc.

○ Made in Japan with integrated in-house production from forging to processing to assembly.

○ Please check the video for how to use.

○Nominal size 600mm
Total length 454mm
Usable wire rope diameter 1.5/2.0/2.5/2.8/3.0/3.5/4.0/5.0mm
1 knife weight 5.2kg
