商品説明
Please check before ordering
○ This product is a set that includes the main body + 100m circumference x 2-tiered struts and electric wires. This set is recommended for wild boar countermeasures on a site with a circumference of 100m.
* If you purchase the fence line, hook, and gate handle separately, you can use it even with 3 stages.
○The maximum cable length per unit is 600m. (In the case of 2 tiers: around 300m/3 tiers: around 200m) *Varies depending on installation conditions.
○With battery for solar panel & solar charge. If you are worried about lack of sunlight, use an AC adapter (sold separately). Please also use
○ Install the main unit in a position as high as possible, taking into consideration the amount of sunlight. Install the solar panel in a location that faces due south and is not in the shade. If the installation direction or the panel surface is shaded, the charging may be insufficient.
○Although this device is rainproof, install it on a brick or a wooden pole to prevent it from being submerged in water.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.

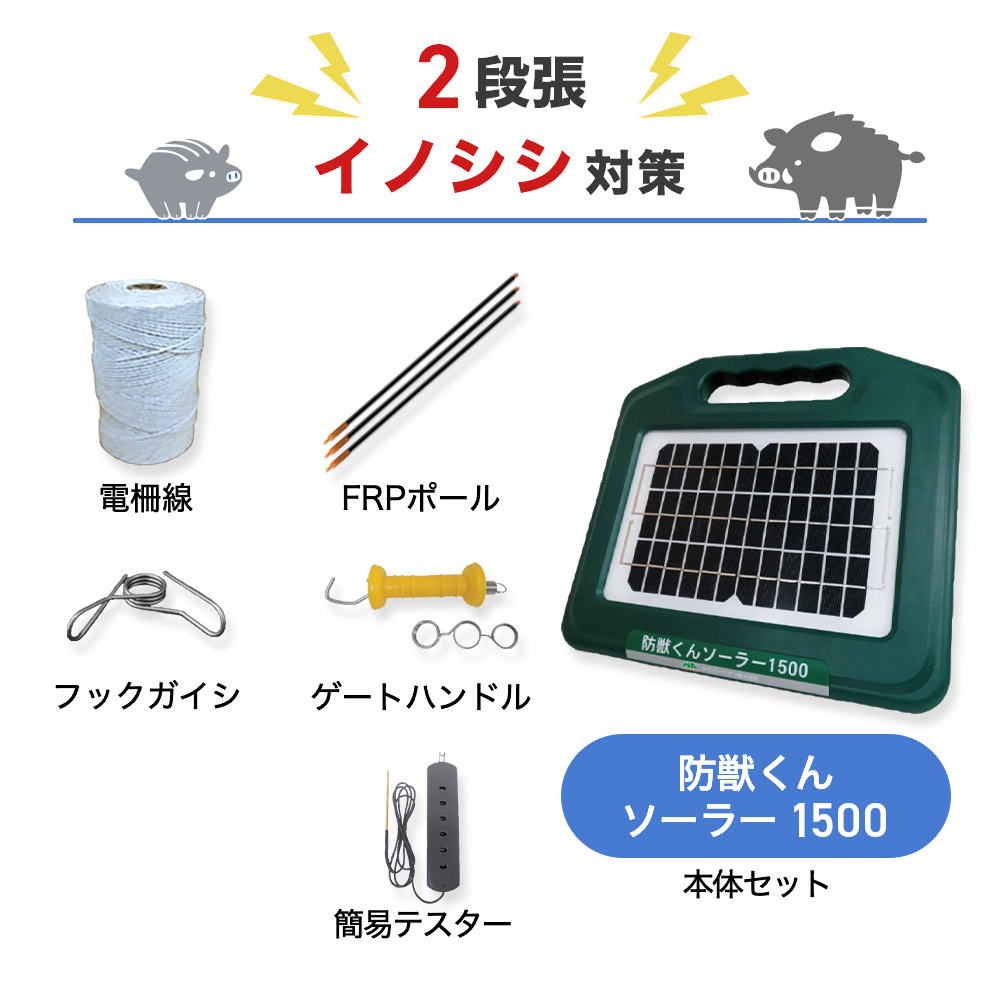

Product composition
This set includes the following A and B necessary for an electric fence. It's a bargain compared to buying each unit.
A: Body set :
Main unit x 1 Dedicated battery x 1 (built-in) Output cable x 1 Ground rod x 1 set
B: Wire set :
◯FRP prop 11 type (90cm)・・・25
◯Stainless hook type 11・・・50
◯Electric fence wire・・・250m roll
◯Simple tester・・・1 piece
◯ Gate handle ... 2 sets
◯ Kiken display board ... 2 sheets
◯Instruction manual ... 1 book
Repel beasts with simple controls
Compact yet high power
The compact body has a maximum voltage of about 8,500V. Since it is solar powered, it can be used in places where there is no power supply. It can also be charged with a 100V power supply using an AC adapter (sold separately).
Outstanding ease of use
Electricity output can be seen at a glance (lights up green during output) The switch can be easily operated with only "continuous operation / night only operation / off".
It is also possible to set the operating time
It is also possible to automatically operate "only at night" by sensing the brightness of the surroundings. Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Night": Operates only at night when it gets dark.)
Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The standard distance between poles is 200-400cm (adjust according to the terrain). Two stainless steel hooks are attached to each pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Attach 4 stainless steel hooks to each pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Attach 8 stainless steel hooks per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
Product specifications
本体入力電源(DC) | ソーラーパネル+充電式バッテリー(付属品)、ACアダプター(別売) |
---|---|
本体出力電圧(DC) | 約9,000V |
本体出力周期 | 約1.0秒 |
本体出力ランプ | 出力されている間緑色に点灯します。 |

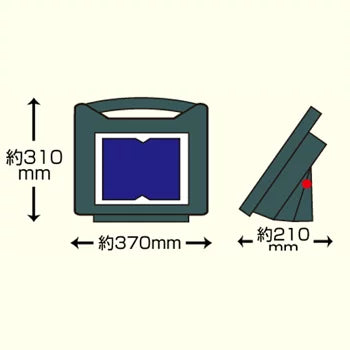

本体外形寸法 | (約)巾370mm×奥行210mm×高さ310mm |
本体重量 | 約4.9kg |
付属品 | ページ内記載の「商品の構成」「電線セット一覧」にてご確認ください。 |
