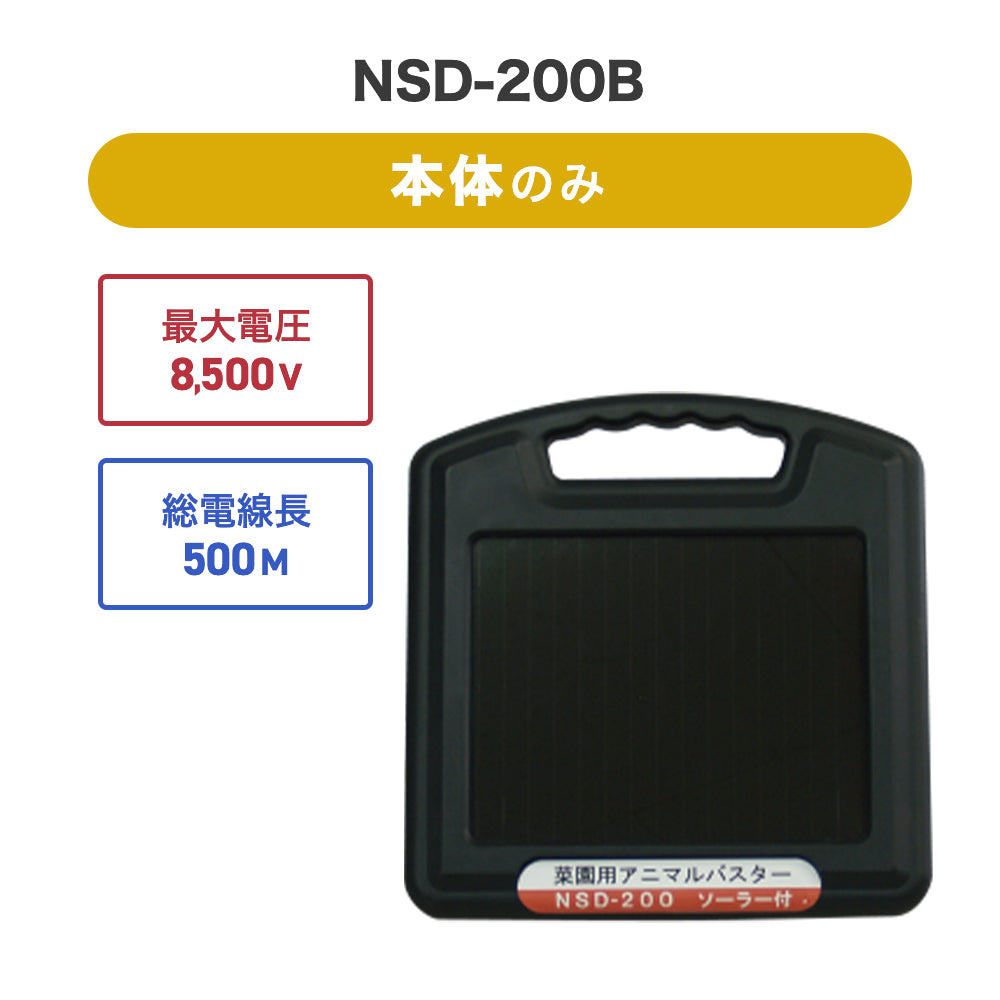

Nishiden Electric Fence Animal Buster NSD-200B (Body Set Only)
Nishiden Electric Fence Animal Buster NSD-200B (Body Set Only)
商品説明
Please check before ordering
○It is the sale in the body simple substance. If you would like to purchase a set of props and wires, please see this page.
○The maximum cable length per unit is 500m. *Varies depending on installation conditions.
○ It works with solar panels. (Maximum continuous operation time: about 14 days (12 hours/day, without solar charging)
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place (see left figure). * Mounting brackets for fixing to wooden stakes are included with this product.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.
A full-fledged specification that will not lose to the beast
Reliable and secure circuit design
The maximum voltage is about 8,500V. In general, weeds and improper installation often cause electric leakage and voltage drop, but this device is designed to prevent the voltage from dropping even in such cases, so it can give a solid shock. increase.
Outstanding ease of use
Power-saving type, it can be charged even when the sunlight is weak, so it can operate even if it is cloudy for 14 days.
It is also possible to set the operating time
It is also possible to automatically operate "only at night" by sensing the brightness of the surroundings. Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Night": Operates only at night when it gets dark.)
Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The approximate distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20 cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
If you would like to purchase individual items such as wires and posts, please click here. You can choose according to the installation location. Learn more>>
Product specifications
| 本体入力電源（DC） | 6V4Aシールドバッテリー、ソーラー充電式（出力1.6W） |
|---|---|
| 本体出力電圧（DC） | 無負荷出力 約8500V |
| 本体電池寿命 | 約14日間(12時間/1日、ソーラー充電無い場合)※使用状況により変動 |
| 本体出力周期 | 1.0～1.2秒 |
| 本体出力ランプ、出力音 | 昼夜・夜で点滅（昼夜連続、夜のみ、切替機能付） |
| 本体外形寸法 | （約）巾265mm×奥行140mm×高さ235mm |
| 本体重量 | 約1.9kg |
| 付属品 | 取扱説明書、出力高圧線、6V4Aシールドバッテリー、危険表示板、取付金具、出力テスター6ランプ、アース棒 |
