Apollo Electric Fence SP-2018-SR Solar Panel Included Perimeter 100m x 2 Tiered Body + Parts Set
Apollo Electric Fence SP-2018-SR Solar Panel Included Perimeter 100m x 2 Tiered Body + Parts Set
- 出荷日目安:
- Ships within 3-4 business days
商品説明
Please check before ordering
○ This product is a set that includes the main body + 100m circumference x 2-tiered struts and electric wires. This set is recommended for sites with a circumference of 100 m. A 100m extension set is also available.
* If you purchase fence lines, hooks, and gate handles separately, you can use it with 3 or more stages.
○ With 10W solar panel & solar charging battery You can drive it without having to purchase a separate power supply. This is the type that does not come with a solar panel .
○The maximum cable length per unit is 600m. *Varies depending on installation conditions.
○Considering the sunshine on the main unit, install the solar panel in a location that is not shaded, facing due south. If the installation direction or the panel surface is shaded, the charging may be insufficient.
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place. * Mounting brackets for fixing to wooden stakes are included with this product.
○Although this device is rainproof, install it on a brick or a wooden pole to prevent it from being submerged in water.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.

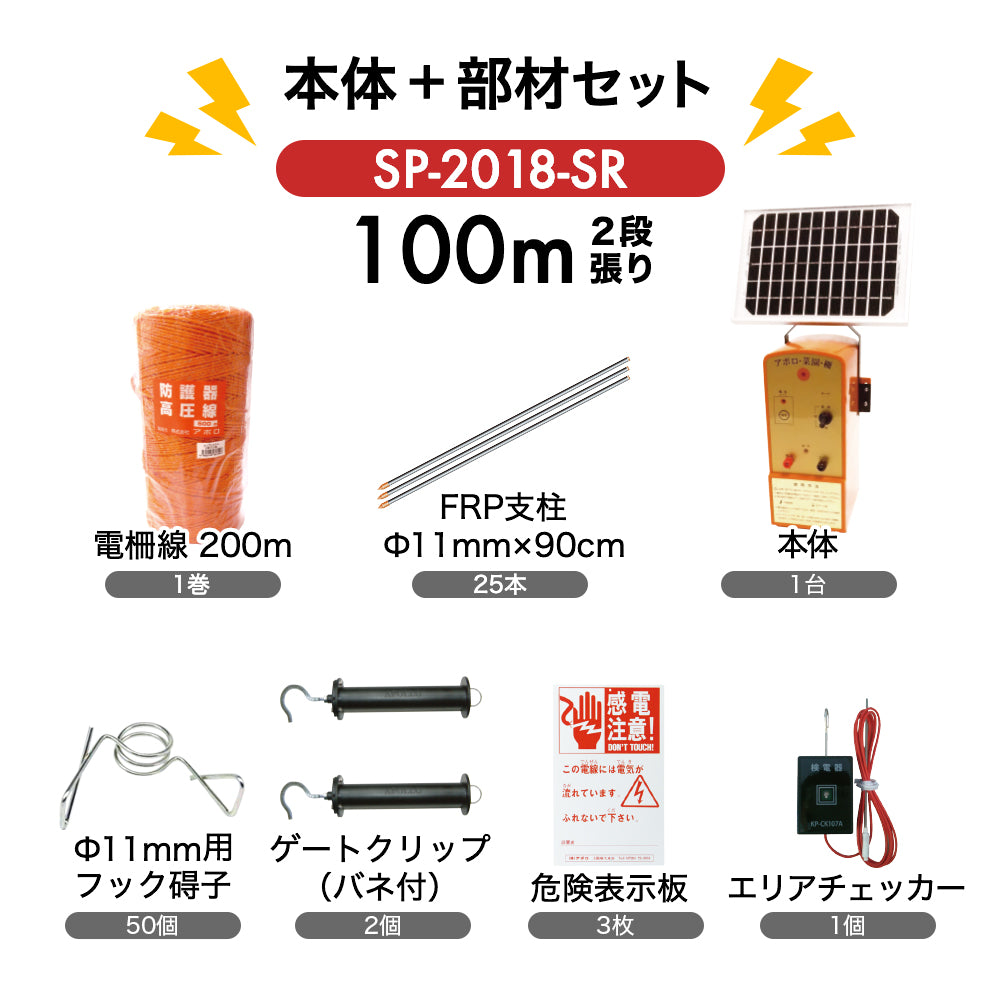

Product composition
This set includes the following A and B necessary for an electric fence. It's a bargain compared to buying each unit.
A: Body set :
Main body Solar panel Dedicated battery Ground rod 1 series Main body mounting bracket High voltage wire Voltage detector (tester)
B: Wire set :
◯FRP poles (Φ11mm x height 900mm)・・・25
◯Hook insulator for Φ11mm・・・50 pieces
Electric fence wire (200m)・・・1 roll
◯ Area checker ... 1 piece
◯ Gate handle ... 2 sets
◯ Hazard sign board ... 1 sheet
Ultimate anti-animal measures with an electric fence from a specialized manufacturer
Ideal for home gardens, etc.

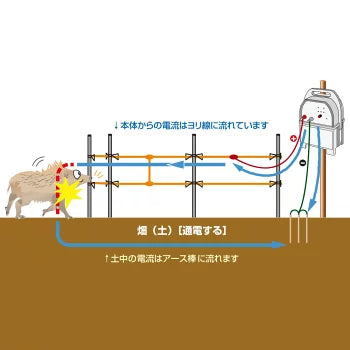

The electric fence effective distance is 600m, so it is ideal for protecting small-scale home gardens. The effective maximum voltage is about 10,000V, which is the maximum voltage that can be output with domestically produced electric fences. Since it is solar powered, it can be used in places where there is no power supply.
Outstanding ease of use
The operation is simple, so you can easily switch the operation. When the battery level becomes low, the power lamp flashes to notify you of the time to replace the electricity.
It is also possible to set the operating time
It is also possible to detect the brightness of the surroundings and automatically operate "drinking during the day" and "only at night". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the bright day. "Night": Operates only at night when it gets dark.)

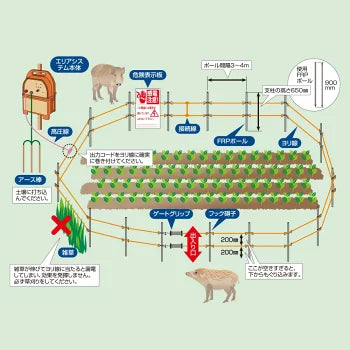

Example of installation method for each animal
Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The standard distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
This set is recommended as a countermeasure against wild boars. A complete set of equipment needed to install an electric fence. Learn more
Product specifications
| 入力電源（DC） | ソーラーパネル＋充電式バッテリー（付属品） |
|---|---|
| 出力電圧（DC） | 約10,000Ｖ |
| 本体出力ランプ | 高圧が出力されている時に点灯します。 |
| 本体外形寸法 | 巾120mm×奥行140mm×高さ27.5mm |
| 本体重量 | 約5.8kg |
| 付属品 | 本体、ソーラーパネル、専用バッテリー、アース棒1連、本体取付金具、高圧線、検電器（テスター）、保証書付取扱説明書、FRPポール（Φ11mm×900mm）×25本、Φ11mm用フックガイシ×50個、柵線（200m）×1巻、エリアチェッカー×1個、ゲートハンドル×2個、危険表示板×1枚 |
