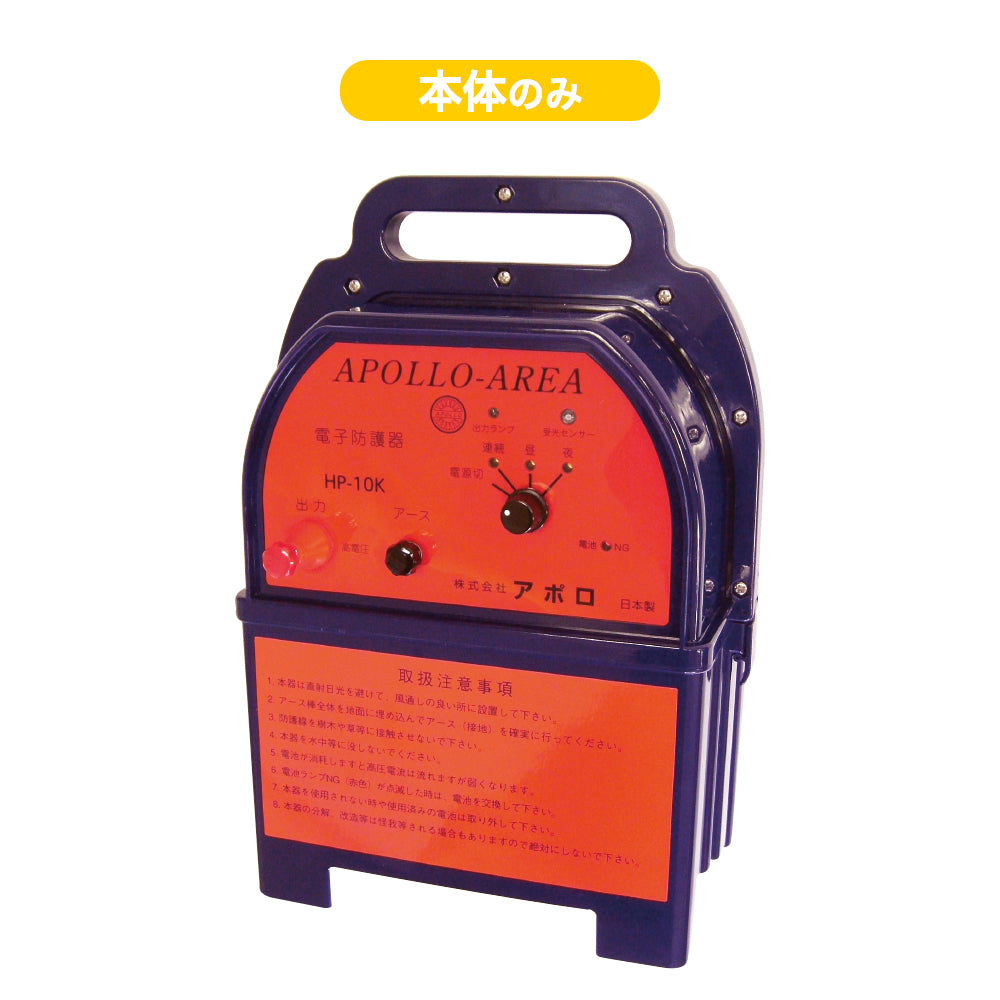

Apollo electric fence HP-10K (body only)
Apollo electric fence HP-10K (body only)
- 出荷日目安:
- Ships within 3-4 business days
商品説明
Please check before ordering
○It is the sale in the body simple substance. If you are looking to purchase poles and wires, please see this page where you will find all the materials you need to install an electric fence.
○The maximum cable length per unit is 10,000 m. *Varies depending on installation conditions.
○ Operates with an external power supply using the attached cord. Solar panel is not included (can be retrofitted).
○ It is necessary to install the main unit so that it does not touch the ground. Please prepare wooden stakes separately according to the ground of the installation place. * Mounting brackets for fixing to wooden stakes are included with this product.
○Although this device is rainproof, install it on a brick or a wooden pole to prevent it from being submerged in water.
○ Please install a caution signboard using an electric fence (also included with this product) in a position where people can easily see it.
○Please be careful not to allow children to come near the installation location.
to install an electric fence

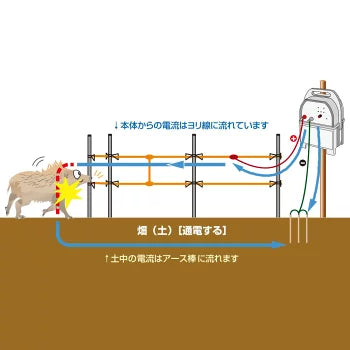

To install an electric fence, you need a main body (power supply) set and an electric wire set (electric fence rope, insulator, post, gate clip). *Please note that struts, insulators, and gate clips are not compatible with other manufacturers.

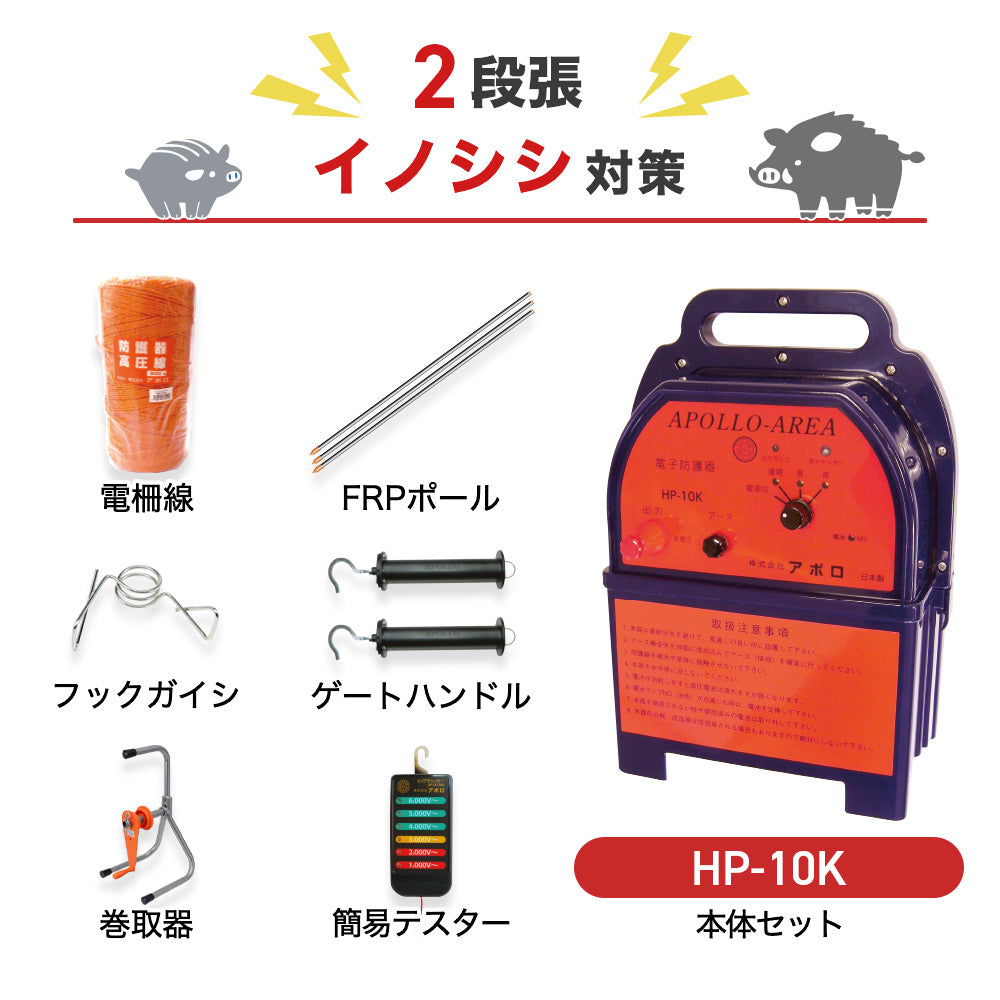

Main unit (power supply) set
A power supply for sending electric shocks, a hazard sign, a grounding rod, a high-voltage wire, and a main unit mounting bracket are included in the set. (Accessories vary depending on the manufacturer.)
electric wire set
Please combine the rope (electric wire) for transmitting electric shock, the strut for stretching the rope, the insulator, and the gate clip to be installed at the entrance according to the length of the electric fence you are using. Also sold as a set.
Ultimate anti-animal measures with an electric fence from a specialized manufacturer
Effective electric fence distance is 10km
The maximum voltage is about 10,000V, which is the maximum voltage that can be produced by domestically produced electric fences. It is a model with the largest class of stored energy. The output voltage at the end of the protective wire is increased, effectively preventing animal invasion. Effective distance is 10km and protects large-scale area.
Outstanding ease of use
The operation is simple, so you can easily switch the operation. When the battery level is low, the power lamp flashes to let you know when it's time to charge the battery.
It is also possible to set the operating time
It is also possible to detect the brightness of the surroundings and automatically operate "drinking during the day" and "only at night". Can be set with a changeover switch ("Continuous": Operates continuously day and night. "Day": Operates only during the bright day. "Night": Operates only at night when it gets dark.)
Example of installation method for each animal

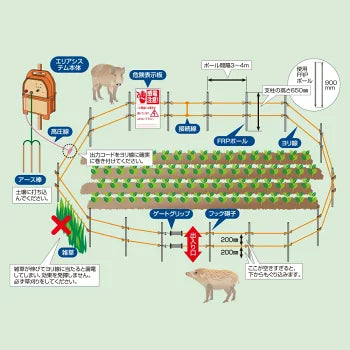

Wild boar countermeasures (two-tiered)
Wild boars have very sensitive noses, so the fence should be placed at the height of the nose. *Even if you try to hit the body, the effect will be diluted.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground. The standard distance between poles is 200-400cm (adjust according to the terrain). Install two insulators per pole at intervals of 20cm. Connect the connecting lines at intervals of 50 meters.
Measures against deer (4 layers)
Install the fence line at a height where you cannot pass through the lower row and at a height where you cannot jump over the upper row.
Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 4 insulators per pole at intervals of 30 cm. Connect the connecting lines at intervals of 50 meters.
Measures against monkeys (8 columns)
Install it in a position where it cannot jump into, such as a tall tree or a telephone pole. Drive the post (FRP pole in the figure) 20 to 30 cm into the ground.
The standard distance between poles is 300-400cm (adjust according to the terrain). Install 8 insulators per pole at 20 cm intervals. Use two connection wires as a pair and connect them at intervals of 50 cm (+ and - are connected at different levels).
Product line-up
This set is recommended as a countermeasure against wild boars. A complete set of equipment needed to install an electric fence. Learn more
Product specifications
| 入力電源（DC） | 12V（ACアダプター、自動車用バッテリー） |
|---|---|
| 出力電圧（DC） | 約10,000Ｖ |
| 本体出力ランプ | 高圧が出力されている時に点灯します。 |
| 本体外形寸法 | 巾205mm×奥行155mm×高さ310mm |
| 本体重量 | 約3.2kg |
| 付属品 | 本体、アース棒3連、本体取付金具、高圧線、危険表示板、保証書付取扱説明書、ハイパワーACアダプター、外部バッテリーコード、漏電遮断器 |
